1 x 1 x 1/2 inch thick w/ hole to accept No. 8 screws Plastic Coated Magnets | BX0X08DCSPC-BL

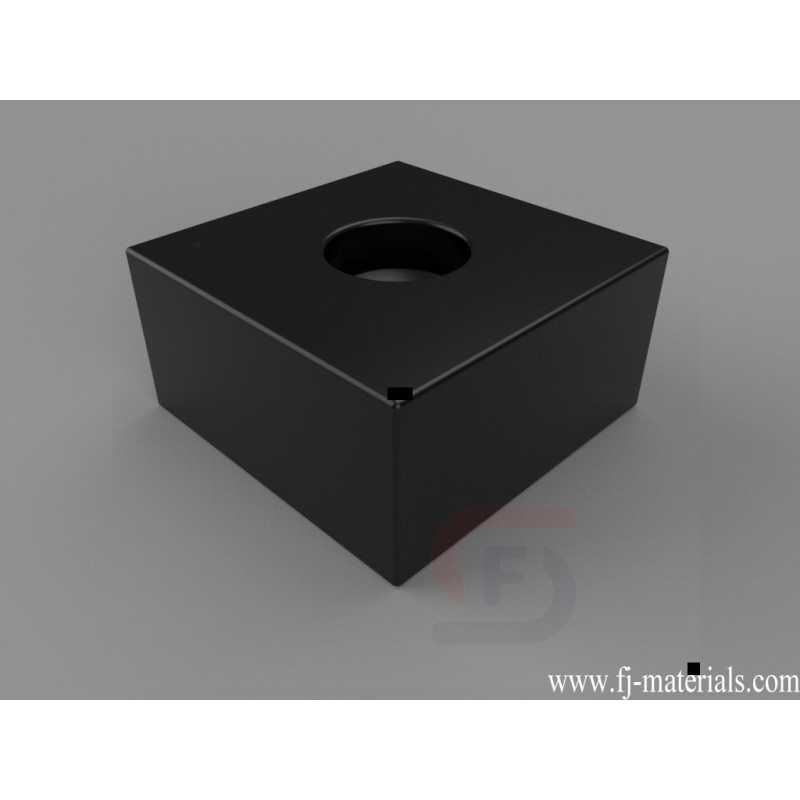

BX0X08DCSPC-BLK Plastic Coated Neodymium Magnets is made of Grade N42 NdFeB, Plastic Coated. The dimension is 1" x 1" x 1/2" thick w/ hole to accept #8 screws, Thru Thickness magnetized. Pull force is approximately 27.3 lbs.
Yiwu Fenjiao E-commerce Firm supply BX0X08DCSPC-BLK Plastic/Rubber Coated with high quality at competitive price.
BX0X08DCSPC-BLK Plastic Coated Neodymium Magnets is made of Grade N42 NdFeB, Plastic Coated. The dimension is 1" x 1" x 1/2" thick w/ hole to accept #8 screws, Thru Thickness magnetized. Pull force is approximately 27.3 lbs.
Different grade, coating or magnetization direction can also be custom-made for this size. You can send us your inquiry for a quote. Discount can be applied for bulk quantities.
BX0X08DCSPC-BL
Data sheet
- Item Number
- BX0X08DCSPC-BL
- Material
- NdFeB
- Grade
- N42
- Size
- 1" x 1" x 1/2" thick w/ hole to accept No. 8 screws
- Tolerance
- ±0.004"(±0.1mm)
- Coating
- Plastic Coated
- Magnetization Direction
- Thru Thickness
- Weight
- 1.75 oz (49.5 g)
- Pull Force
- 27.3 lbs
- Thickness
- D. 9.53-12.7mm
- Length
- F. 19.05-25.4mm
- Width
- F. 19.05-25.4mm
BX0X08DCSPC-BLK Plastic Coated Neodymium Magnets is made of Grade N42 NdFeB, Plastic Coated. The dimension is 1" x 1" x 1/2" thick w/ hole to accept #8 screws, Thru Thickness magnetized. Pull force is approximately 27.3 lbs.
