1 1/2 x 3/4 x 3/8 inch thick w/ holes to accept No. 6 screws Plastic Coated Magnets | BX8C6DCSPC-BLK

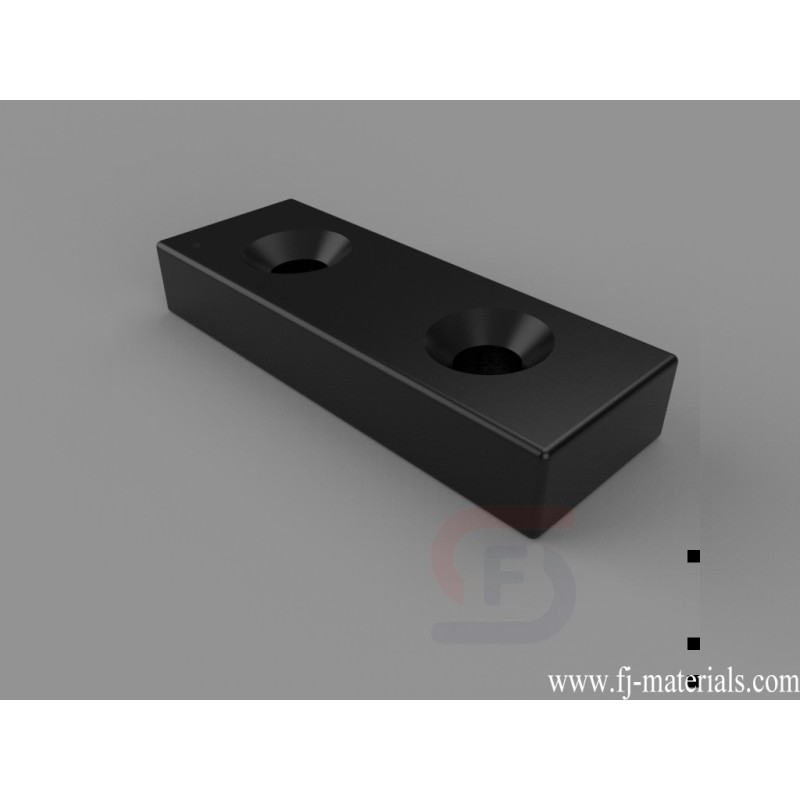

BX8C6DCSPC-BLK Plastic Coated Neodymium Magnets is made of Grade N42 NdFeB, Plastic Coated. The dimension is 1 1/2" x 3/4" x 3/8" thick w/ holes to accept #6 screws, Thru Thickness magnetized. Pull force is approximately 26.34 lbs.
Yiwu Fenjiao E-commerce Firm supply BX8C6DCSPC-BLK Plastic/Rubber Coated with high quality at competitive price.
BX8C6DCSPC-BLK Plastic Coated Neodymium Magnets is made of Grade N42 NdFeB, Plastic Coated. The dimension is 1 1/2" x 3/4" x 3/8" thick w/ holes to accept #6 screws, Thru Thickness magnetized. Pull force is approximately 26.34 lbs.
Different grade, coating or magnetization direction can also be custom-made for this size. You can send us your inquiry for a quote. Discount can be applied for bulk quantities.
BX8C6DCSPC-BLK
Data sheet
- Item Number
- BX8C6DCSPC-BLK
- Material
- NdFeB
- Grade
- N42
- Size
- 1 1/2" x 3/4" x 3/8" thick w/ holes to accept No. 6 screws
- Tolerance
- ±0.004"(±0.1mm)
- Coating
- Plastic Coated
- Magnetization Direction
- Thru Thickness
- Weight
- 1.42 oz (40.16 g)
- Pull Force
- 26.34 lbs
- Thickness
- C. 6.35-9.53mm
- Length
- G. 25.4-50.8mm
- Width
- E. 12.7-19.05mm
BX8C6DCSPC-BLK Plastic Coated Neodymium Magnets is made of Grade N42 NdFeB, Plastic Coated. The dimension is 1 1/2" x 3/4" x 3/8" thick w/ holes to accept #6 screws, Thru Thickness magnetized. Pull force is approximately 26.34 lbs.
