2 x 1 x 1/2 inch thick w/ holes to accept No. 8 screws Plastic Coated Magnets | BY0X08DCSPC-BL

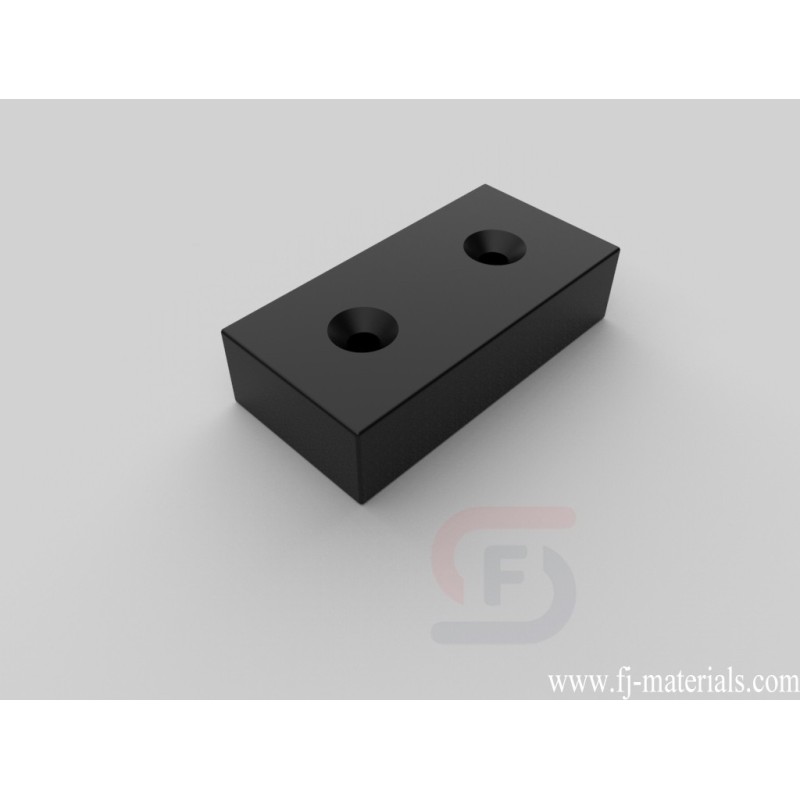

BY0X08DCSPC-BLK Plastic Coated Neodymium Magnets is made of Grade N42 NdFeB, Plastic Coated. The dimension is 2" x 1" x 1/2" thick w/ holes to accept #8 screws, Thru Thickness magnetized. Pull force is approximately 42.76 lbs.
Yiwu Fenjiao E-commerce Firm supply BY0X08DCSPC-BLK Plastic/Rubber Coated with high quality at competitive price.
BY0X08DCSPC-BLK Plastic Coated Neodymium Magnets is made of Grade N42 NdFeB, Plastic Coated. The dimension is 2" x 1" x 1/2" thick w/ holes to accept #8 screws, Thru Thickness magnetized. Pull force is approximately 42.76 lbs.
Different grade, coating or magnetization direction can also be custom-made for this size. You can send us your inquiry for a quote. Discount can be applied for bulk quantities.
BY0X08DCSPC-BL
Data sheet
- Item Number
- BY0X08DCSPC-BL
- Material
- NdFeB
- Grade
- N42
- Size
- 2" x 1" x 1/2" thick w/ holes to accept No. 8 screws
- Tolerance
- ±0.004"(±0.1mm)
- Coating
- Plastic Coated
- Magnetization Direction
- Thru Thickness
- Weight
- 3.59 oz (101.7 g)
- Pull Force
- 42.76 lbs
- Thickness
- D. 9.53-12.7mm
- Length
- G. 25.4-50.8mm
- Width
- F. 19.05-25.4mm
BY0X08DCSPC-BLK Plastic Coated Neodymium Magnets is made of Grade N42 NdFeB, Plastic Coated. The dimension is 2" x 1" x 1/2" thick w/ holes to accept #8 screws, Thru Thickness magnetized. Pull force is approximately 42.76 lbs.
