3/4 x 1/4 x 1/16 inch thick Block Magnets | BC41

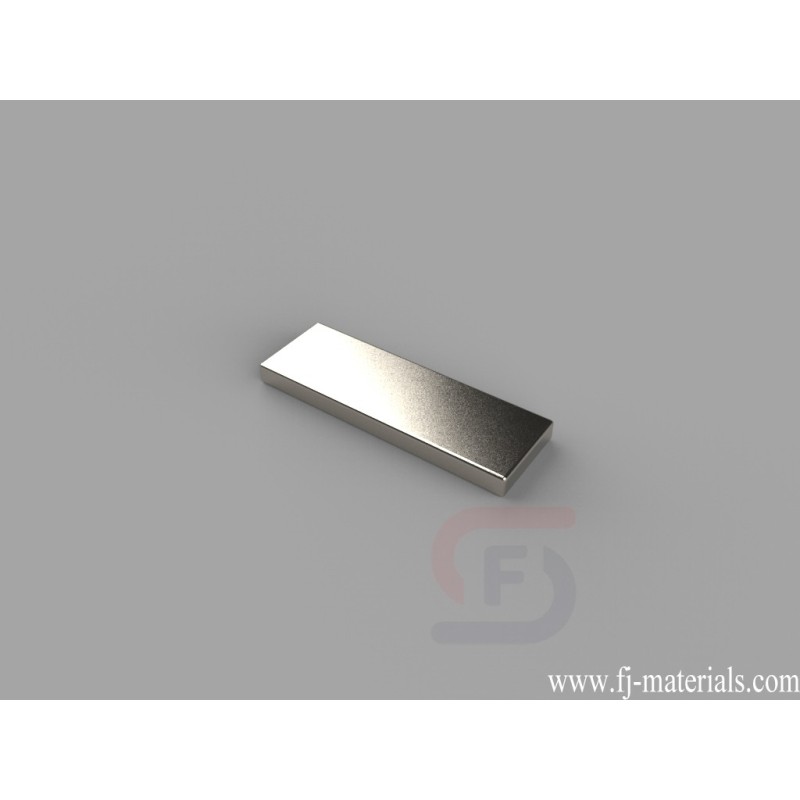

BC41 Neodymium Block Magnets is made of Grade N42 NdFeB, Nickel Plated. The dimension is 3/4" x 1/4" x 1/16" thick, Thru Thickness magnetized. Pull force is approximately 3.07 lbs.
Yiwu Fenjiao E-commerce Firm supply BC41 Neodymium Block Magnets with high quality at competitive price.
BC41 Neodymium Block Magnets is made of Grade N42 NdFeB, Nickel Plated. The dimension is 3/4" x 1/4" x 1/16" thick, Thru Thickness magnetized. Pull force is approximately 3.07 lbs.
Different grade, coating or magnetization direction can also be custom-made for this size. You can send us your inquiry for a quote. Discount can be applied for bulk quantities.
BC41
Data sheet
- Item Number
- BC41
- Material
- NdFeB
- Grade
- N42
- Size
- 3/4" x 1/4" x 1/16" thick
- Tolerance
- ±0.004"(±0.1mm)
- Coating
- Nickel Plated
- Magnetization Direction
- Thru Thickness
- Weight
- 0.0508 oz. (1.44 g)
- Pull Force
- 3.07 lbs
- Thickness
- A. 0.00-3.18mm
- Length
- E. 12.7-19.05mm
- Width
- B. 3.18-6.35mm
BC41 Neodymium Block Magnets is made of Grade N42 NdFeB, Nickel Plated. The dimension is 3/4" x 1/4" x 1/16" thick, Thru Thickness magnetized. Pull force is approximately 3.07 lbs.
