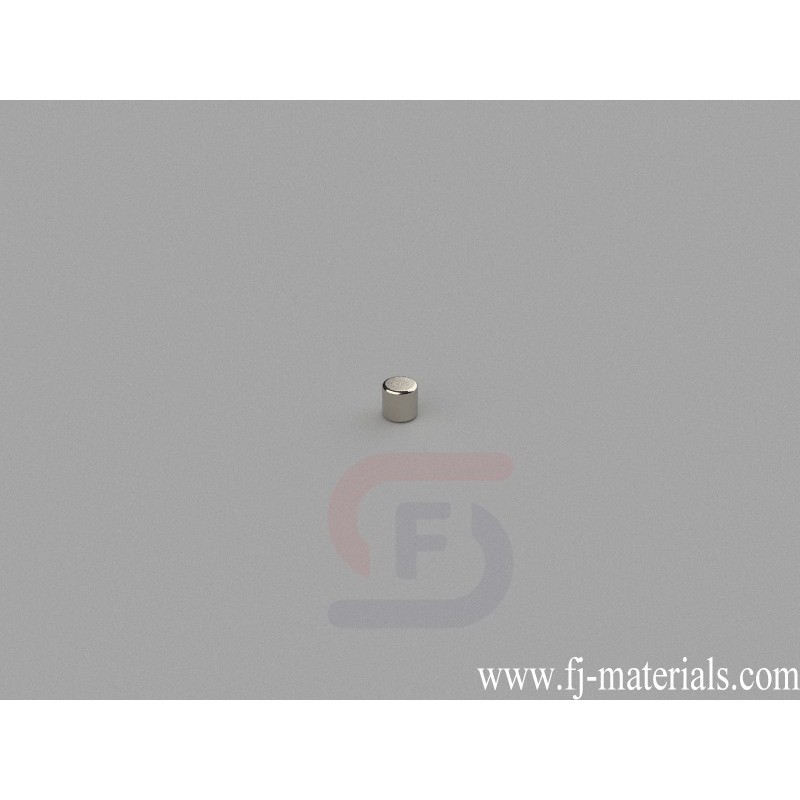

1.58mm dia. x 1.58mm thick Cylinder Magnets | C-D1.58H1.58-N52

C-D1.58H1.58-N52 Neodymium Magnet, 1.58x1.58mm Cylinder Magnet is made of Grade N52 NdFeB, Nickel Plated. The dimension is 1.58mm dia. x 1.58mm thick, Axial magnetized. Pull force is approximately 0.47 lbs (0.22kg).

C-D1.58H1.58-N52 Neodymium Disc Magnets is made from high perfermance N52 NdFeB. The dimesion is 1.58mm dia. x 1.58mm thick, Ni-Cu-Ni (Nickel) coating. Pull force: 0.47 lbs (0.22kg). Magnetization direction: Axial (Poles on Flat Ends)

C-D1.58H1.58-N52 Neodymium Magnet, 1.58x1.58mm Cylinder Magnet is made of Grade N52 NdFeB, Nickel Plated. The dimension is 1.58mm dia. x 1.58mm thick, Axial magnetized. Pull force is approximately 0.47 lbs (0.22kg).

Different grade, coating or magnetization direction can also be custom-made for this size. You can send us your inquiry for a quote. Discount can be applied for bulk quantities.

C-D1.58H1.58-N52

Data sheet

Item Number
C-D1.58H1.58-N52
Material
NdFeB
Grade
N52
Size
1.58mm dia. x 1.58mm thick
Tolerance
±0.004"(±0.1mm)
Coating
Nickel Plated
Magnetization Direction
Axial
Weight
0.023g
Pull Force
0.47 lbs (0.22kg)
Diameter
A. 0.00-3.18mm
Thickness
A. 0.00-3.18mm
