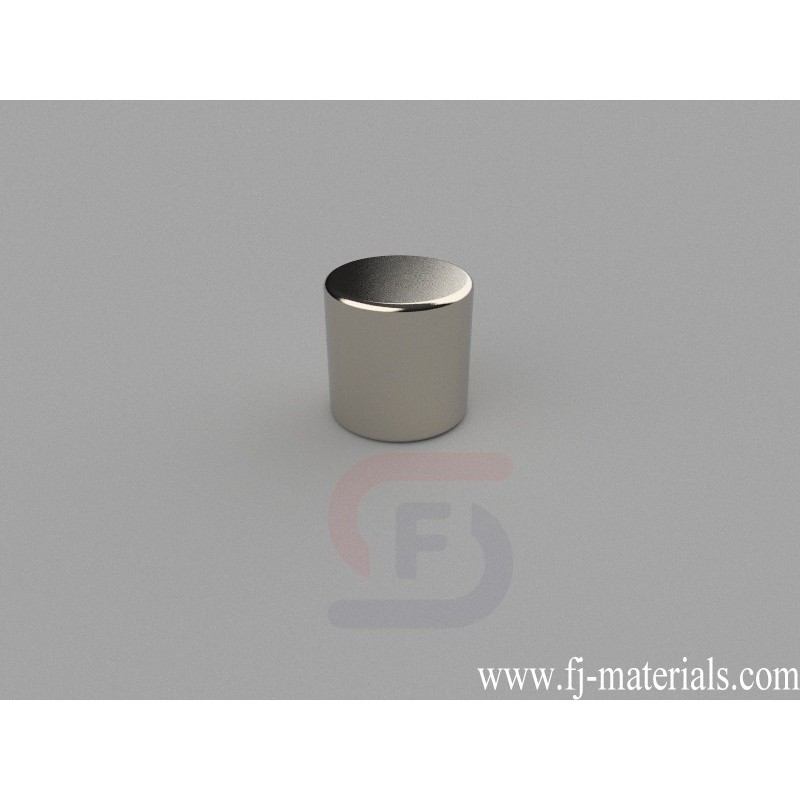

10mm dia. x 10mm thick Cylinder Magnets | C-D10H10-N35

C-D10H10-N35 Neodymium Magnet, 10x10mm Cylinder Magnet is made of Grade N35 NdFeB, Nickel Plated. The dimension is 10mm dia. x 10mm thick, Axial magnetized. Pull force is approximately 11.13 lbs (5.06kg).

C-D10H10-N35 Neodymium Disc Magnets is made from high perfermance N35 NdFeB. The dimesion is 10mm dia. x 10mm thick, Ni-Cu-Ni (Nickel) coating. Pull force: 11.13 lbs (5.06kg). Magnetization direction: Axial (Poles on Flat Ends)

C-D10H10-N35 Neodymium Magnet, 10x10mm Cylinder Magnet is made of Grade N35 NdFeB, Nickel Plated. The dimension is 10mm dia. x 10mm thick, Axial magnetized. Pull force is approximately 11.13 lbs (5.06kg).

Different grade, coating or magnetization direction can also be custom-made for this size. You can send us your inquiry for a quote. Discount can be applied for bulk quantities.

C-D10H10-N35

Data sheet

Item Number
C-D10H10-N35
Material
NdFeB
Grade
N35
Size
10mm dia. x 10mm thick
Tolerance
±0.004"(±0.1mm)
Coating
Nickel Plated
Magnetization Direction
Axial
Weight
5.890g
Pull Force
11.13 lbs (5.06kg)
Diameter
D. 9.53-12.7mm
Thickness
D. 9.53-12.7mm
