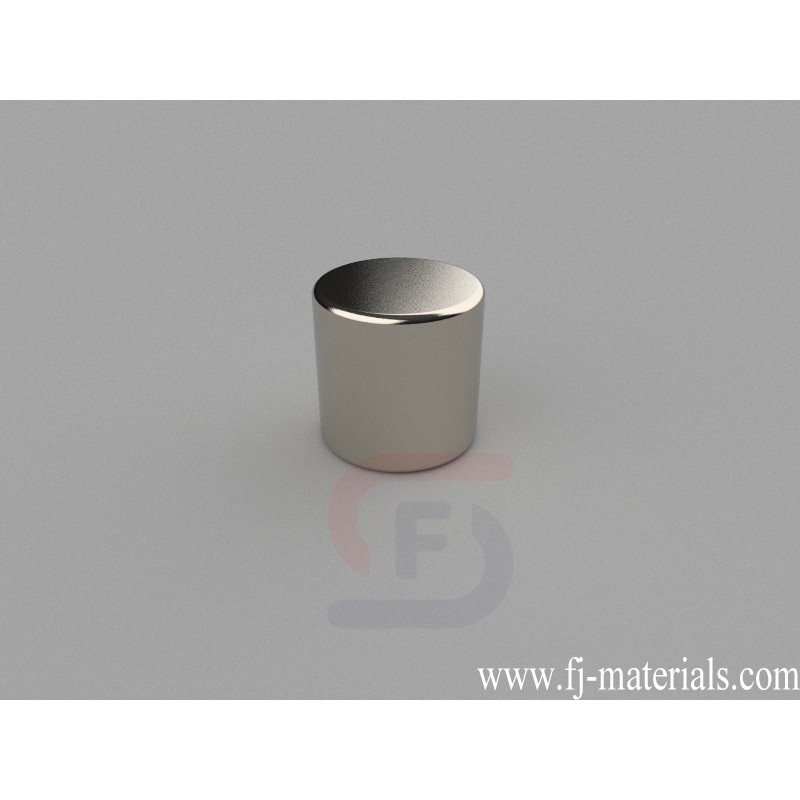

12.7mm dia. x 12.7mm thick Cylinder Magnets | C-D12.7H12.7-N38
C-D12.7H12.7-N38 Neodymium Magnet, 12.7x12.7mm Cylinder Magnet is made of Grade N38 NdFeB, Nickel Plated. The dimension is 12.7mm dia. x 12.7mm thick, Axial magnetized. Pull force is approximately 19.01 lbs (8.64kg).
C-D12.7H12.7-N38 Neodymium Disc Magnets is made from high perfermance N38 NdFeB. The dimesion is 12.7mm dia. x 12.7mm thick, Ni-Cu-Ni (Nickel) coating. Pull force: 19.01 lbs (8.64kg). Magnetization direction: Axial (Poles on Flat Ends)
C-D12.7H12.7-N38 Neodymium Magnet, 12.7x12.7mm Cylinder Magnet is made of Grade N38 NdFeB, Nickel Plated. The dimension is 12.7mm dia. x 12.7mm thick, Axial magnetized. Pull force is approximately 19.01 lbs (8.64kg).
Different grade, coating or magnetization direction can also be custom-made for this size. You can send us your inquiry for a quote. Discount can be applied for bulk quantities.
C-D12.7H12.7-N38
Data sheet
- Item Number
- C-D12.7H12.7-N38
- Material
- NdFeB
- Grade
- N38
- Size
- 12.7mm dia. x 12.7mm thick
- Tolerance
- ±0.004"(±0.1mm)
- Coating
- Nickel Plated
- Magnetization Direction
- Axial
- Weight
- 12.066g
- Pull Force
- 19.01 lbs (8.64kg)
- Diameter
- D. 9.53-12.7mm
- Thickness
- D. 9.53-12.7mm
C-D12.7H12.7-N38 Neodymium Magnet, 12.7x12.7mm Cylinder Magnet is made of Grade N38 NdFeB, Nickel Plated. The dimension is 12.7mm dia. x 12.7mm thick, Axial magnetized. Pull force is approximately 19.01 lbs (8.64kg).
