  • C-D12.7H12.7-N48

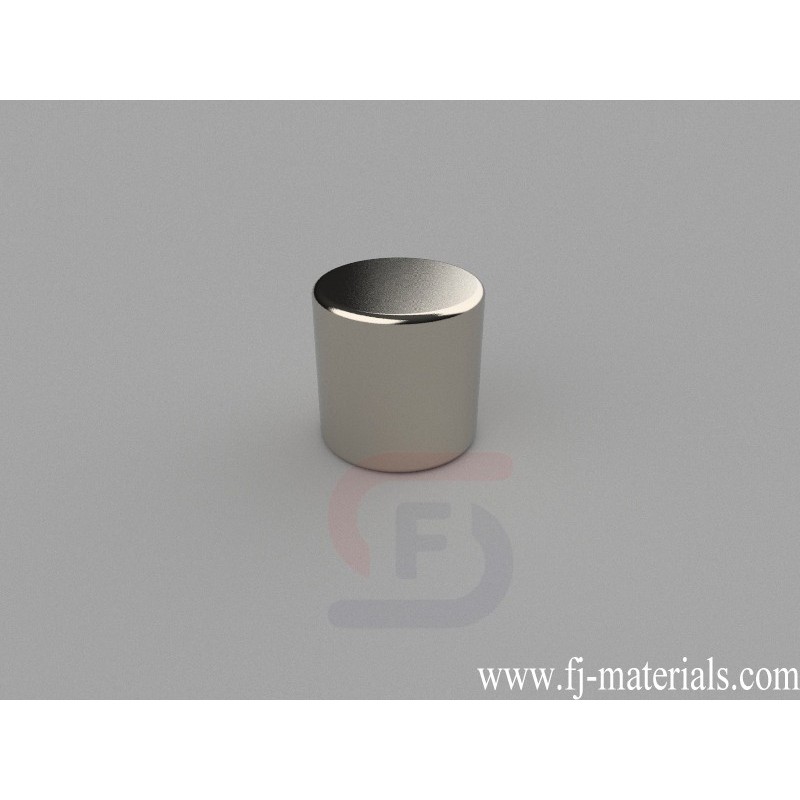

12.7mm dia. x 12.7mm thick Cylinder Magnets | C-D12.7H12.7-N48

C-D12.7H12.7-N48 Neodymium Magnet, 12.7x12.7mm Cylinder Magnet is made of Grade N48 NdFeB, Nickel Plated. The dimension is 12.7mm dia. x 12.7mm thick, Axial magnetized. Pull force is approximately 23.46 lbs (10.67kg).

C-D12.7H12.7-N48 Neodymium Disc Magnets is made from high perfermance N48 NdFeB. The dimesion is 12.7mm dia. x 12.7mm thick, Ni-Cu-Ni (Nickel) coating. Pull force: 23.46 lbs (10.67kg). Magnetization direction: Axial (Poles on Flat Ends)

C-D12.7H12.7-N48 Neodymium Magnet, 12.7x12.7mm Cylinder Magnet is made of Grade N48 NdFeB, Nickel Plated. The dimension is 12.7mm dia. x 12.7mm thick, Axial magnetized. Pull force is approximately 23.46 lbs (10.67kg).

Different grade, coating or magnetization direction can also be custom-made for this size. You can send us your inquiry for a quote. Discount can be applied for bulk quantities.

C-D12.7H12.7-N48

Data sheet

Item Number
C-D12.7H12.7-N48
Material
NdFeB
Grade
N48
Size
12.7mm dia. x 12.7mm thick
Tolerance
±0.004"(±0.1mm)
Coating
Nickel Plated
Magnetization Direction
Axial
Weight
12.066g
Pull Force
23.46 lbs (10.67kg)
Diameter
D. 9.53-12.7mm
Thickness
D. 9.53-12.7mm
