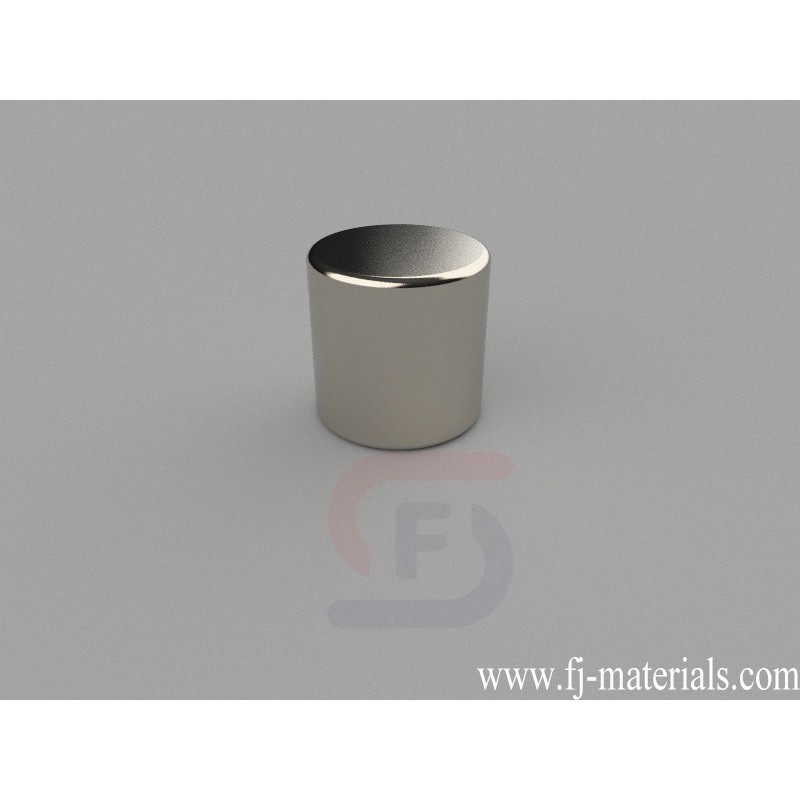

12mm dia. x 12mm thick Cylinder Magnets | C-D12H12-N45
C-D12H12-N45 Neodymium Magnet, 12x12mm Cylinder Magnet is made of Grade N45 NdFeB, Nickel Plated. The dimension is 12mm dia. x 12mm thick, Axial magnetized. Pull force is approximately 19.88 lbs (9.04kg).
C-D12H12-N45 Neodymium Disc Magnets is made from high perfermance N45 NdFeB. The dimesion is 12mm dia. x 12mm thick, Ni-Cu-Ni (Nickel) coating. Pull force: 19.88 lbs (9.04kg). Magnetization direction: Axial (Poles on Flat Ends)
C-D12H12-N45 Neodymium Magnet, 12x12mm Cylinder Magnet is made of Grade N45 NdFeB, Nickel Plated. The dimension is 12mm dia. x 12mm thick, Axial magnetized. Pull force is approximately 19.88 lbs (9.04kg).
Different grade, coating or magnetization direction can also be custom-made for this size. You can send us your inquiry for a quote. Discount can be applied for bulk quantities.
C-D12H12-N45
Data sheet
- Item Number
- C-D12H12-N45
- Material
- NdFeB
- Grade
- N45
- Size
- 12mm dia. x 12mm thick
- Tolerance
- ±0.004"(±0.1mm)
- Coating
- Nickel Plated
- Magnetization Direction
- Axial
- Weight
- 10.179g
- Pull Force
- 19.88 lbs (9.04kg)
- Diameter
- D. 9.53-12.7mm
- Thickness
- D. 9.53-12.7mm
C-D12H12-N45 Neodymium Magnet, 12x12mm Cylinder Magnet is made of Grade N45 NdFeB, Nickel Plated. The dimension is 12mm dia. x 12mm thick, Axial magnetized. Pull force is approximately 19.88 lbs (9.04kg).
