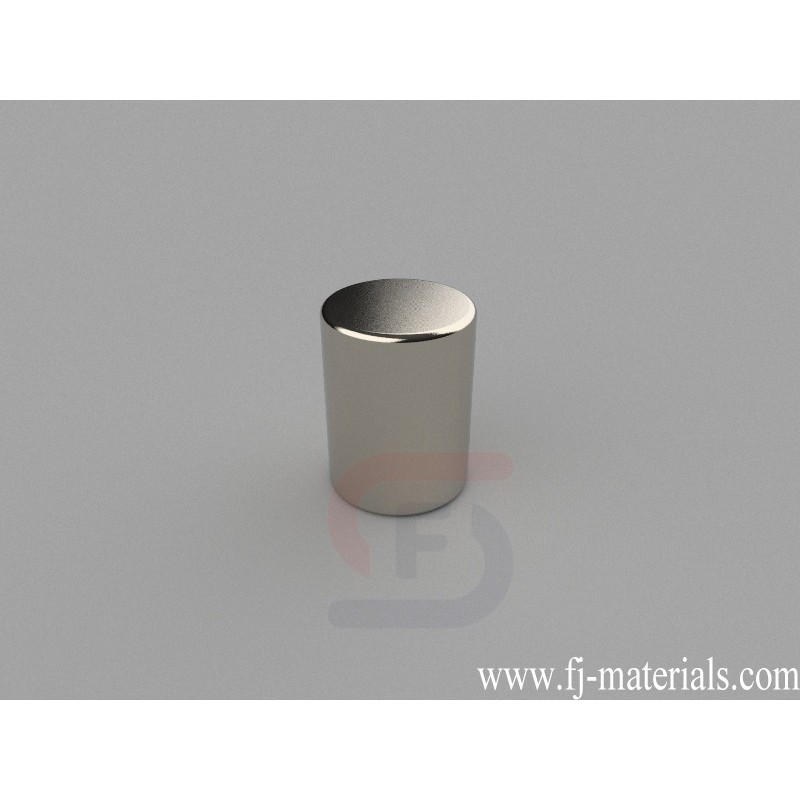

12mm dia. x 16mm thick Cylinder Magnets | C-D12H16-N45

C-D12H16-N45 Neodymium Magnet, 12x16mm Cylinder Magnet is made of Grade N45 NdFeB, Nickel Plated. The dimension is 12mm dia. x 16mm thick, Axial magnetized. Pull force is approximately 22.96 lbs (10.43kg).

C-D12H16-N45 Neodymium Disc Magnets is made from high perfermance N45 NdFeB. The dimesion is 12mm dia. x 16mm thick, Ni-Cu-Ni (Nickel) coating. Pull force: 22.96 lbs (10.43kg). Magnetization direction: Axial (Poles on Flat Ends)

C-D12H16-N45 Neodymium Magnet, 12x16mm Cylinder Magnet is made of Grade N45 NdFeB, Nickel Plated. The dimension is 12mm dia. x 16mm thick, Axial magnetized. Pull force is approximately 22.96 lbs (10.43kg).

Different grade, coating or magnetization direction can also be custom-made for this size. You can send us your inquiry for a quote. Discount can be applied for bulk quantities.

C-D12H16-N45

Data sheet

Item Number
C-D12H16-N45
Material
NdFeB
Grade
N45
Size
12mm dia. x 16mm thick
Tolerance
±0.004"(±0.1mm)
Coating
Nickel Plated
Magnetization Direction
Axial
Weight
13.572g
Pull Force
22.96 lbs (10.43kg)
Diameter
D. 9.53-12.7mm
Thickness
E. 12.7-19.05mm
