12mm dia. x 20mm thick Cylinder Magnets | C-D12H20-N33AH

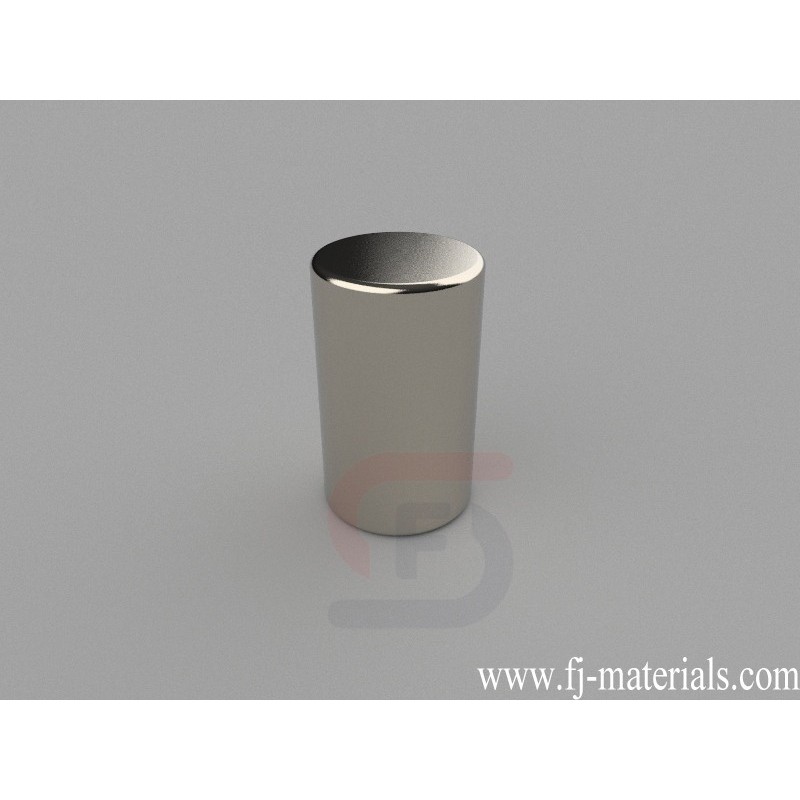

C-D12H20-N33AH Neodymium Magnet, 12x20mm Cylinder Magnet is made of Grade N33AH NdFeB, Nickel Plated. The dimension is 12mm dia. x 20mm thick, Axial magnetized. Pull force is approximately 19.32 lbs (8.78kg).
C-D12H20-N33AH Neodymium Disc Magnets is made from high perfermance N33AH NdFeB. The dimesion is 12mm dia. x 20mm thick, Ni-Cu-Ni (Nickel) coating. Pull force: 19.32 lbs (8.78kg). Magnetization direction: Axial (Poles on Flat Ends)
C-D12H20-N33AH Neodymium Magnet, 12x20mm Cylinder Magnet is made of Grade N33AH NdFeB, Nickel Plated. The dimension is 12mm dia. x 20mm thick, Axial magnetized. Pull force is approximately 19.32 lbs (8.78kg).
Different grade, coating or magnetization direction can also be custom-made for this size. You can send us your inquiry for a quote. Discount can be applied for bulk quantities.
C-D12H20-N33AH
Data sheet
- Item Number
- C-D12H20-N33AH
- Material
- NdFeB
- Grade
- N33AH
- Size
- 12mm dia. x 20mm thick
- Tolerance
- ±0.004"(±0.1mm)
- Coating
- Nickel Plated
- Magnetization Direction
- Axial
- Weight
- 16.965g
- Pull Force
- 19.32 lbs (8.78kg)
- Diameter
- D. 9.53-12.7mm
- Thickness
- F. 19.05-25.4mm
C-D12H20-N33AH Neodymium Magnet, 12x20mm Cylinder Magnet is made of Grade N33AH NdFeB, Nickel Plated. The dimension is 12mm dia. x 20mm thick, Axial magnetized. Pull force is approximately 19.32 lbs (8.78kg).
