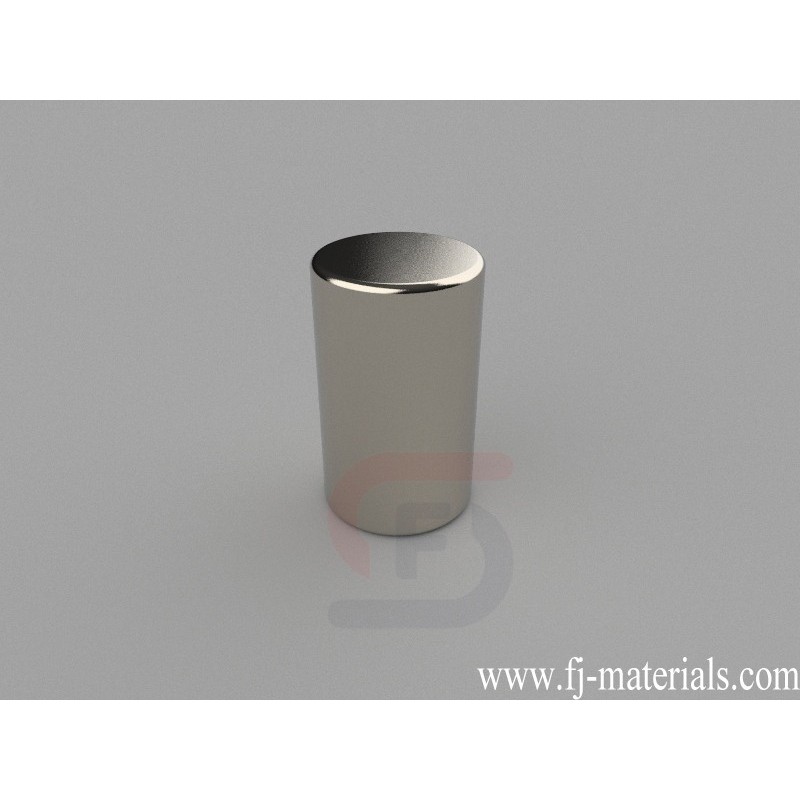

12mm dia. x 20mm thick Cylinder Magnets | C-D12H20-N50

C-D12H20-N50 Neodymium Magnet, 12x20mm Cylinder Magnet is made of Grade N50 NdFeB, Nickel Plated. The dimension is 12mm dia. x 20mm thick, Axial magnetized. Pull force is approximately 27.98 lbs (12.72kg).

C-D12H20-N50 Neodymium Disc Magnets is made from high perfermance N50 NdFeB. The dimesion is 12mm dia. x 20mm thick, Ni-Cu-Ni (Nickel) coating. Pull force: 27.98 lbs (12.72kg). Magnetization direction: Axial (Poles on Flat Ends)

C-D12H20-N50 Neodymium Magnet, 12x20mm Cylinder Magnet is made of Grade N50 NdFeB, Nickel Plated. The dimension is 12mm dia. x 20mm thick, Axial magnetized. Pull force is approximately 27.98 lbs (12.72kg).

Different grade, coating or magnetization direction can also be custom-made for this size. You can send us your inquiry for a quote. Discount can be applied for bulk quantities.

C-D12H20-N50

Data sheet

Item Number
C-D12H20-N50
Material
NdFeB
Grade
N50
Size
12mm dia. x 20mm thick
Tolerance
±0.004"(±0.1mm)
Coating
Nickel Plated
Magnetization Direction
Axial
Weight
16.965g
Pull Force
27.98 lbs (12.72kg)
Diameter
D. 9.53-12.7mm
Thickness
F. 19.05-25.4mm
