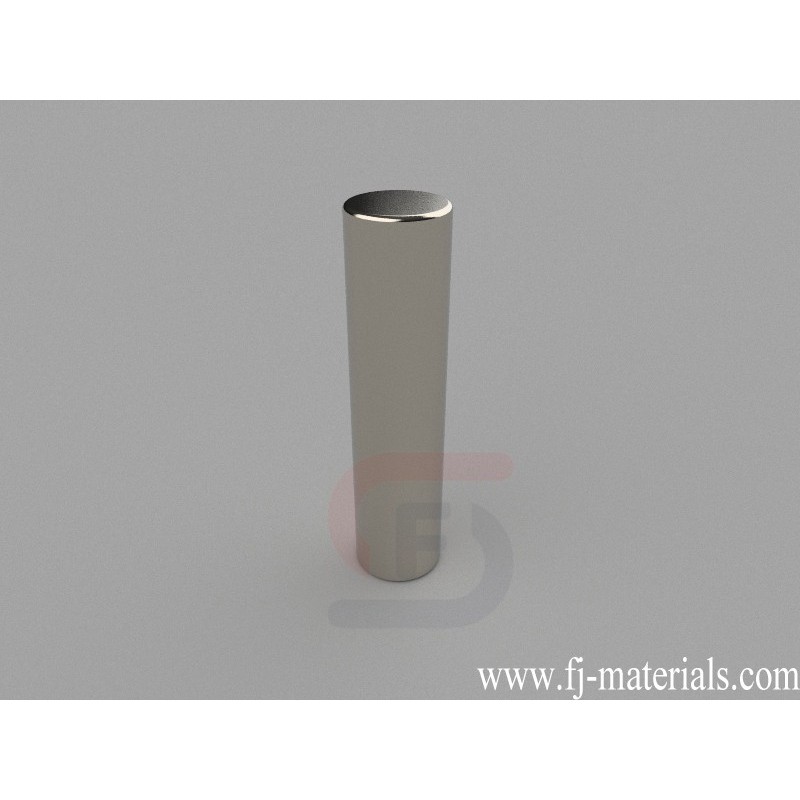

12mm dia. x 50mm thick Cylinder Magnets | C-D12H50-N48
C-D12H50-N48 Neodymium Magnet, 12x50mm Cylinder Magnet is made of Grade N48 NdFeB, Nickel Plated. The dimension is 12mm dia. x 50mm thick, Axial magnetized. Pull force is approximately 43.00 lbs (19.55kg).
C-D12H50-N48 Neodymium Disc Magnets is made from high perfermance N48 NdFeB. The dimesion is 12mm dia. x 50mm thick, Ni-Cu-Ni (Nickel) coating. Pull force: 43.00 lbs (19.55kg). Magnetization direction: Axial (Poles on Flat Ends)
C-D12H50-N48 Neodymium Magnet, 12x50mm Cylinder Magnet is made of Grade N48 NdFeB, Nickel Plated. The dimension is 12mm dia. x 50mm thick, Axial magnetized. Pull force is approximately 43.00 lbs (19.55kg).
Different grade, coating or magnetization direction can also be custom-made for this size. You can send us your inquiry for a quote. Discount can be applied for bulk quantities.
C-D12H50-N48
Data sheet
- Item Number
- C-D12H50-N48
- Material
- NdFeB
- Grade
- N48
- Size
- 12mm dia. x 50mm thick
- Tolerance
- ±0.004"(±0.1mm)
- Coating
- Nickel Plated
- Magnetization Direction
- Axial
- Weight
- 42.412g
- Pull Force
- 43.00 lbs (19.55kg)
- Diameter
- D. 9.53-12.7mm
- Thickness
- G. 25.4-50.8mm
C-D12H50-N48 Neodymium Magnet, 12x50mm Cylinder Magnet is made of Grade N48 NdFeB, Nickel Plated. The dimension is 12mm dia. x 50mm thick, Axial magnetized. Pull force is approximately 43.00 lbs (19.55kg).
