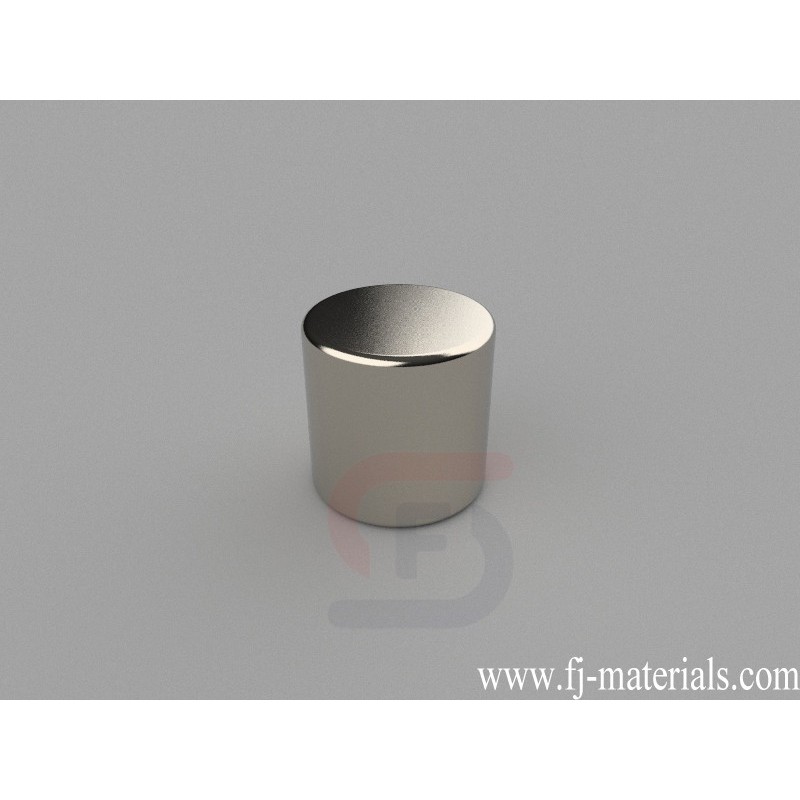

15mm dia. x 15mm thick Cylinder Magnets | C-D15H15-N45

C-D15H15-N45 Neodymium Magnet, 15x15mm Cylinder Magnet is made of Grade N45 NdFeB, Nickel Plated. The dimension is 15mm dia. x 15mm thick, Axial magnetized. Pull force is approximately 30.38 lbs (13.81kg).

C-D15H15-N45 Neodymium Disc Magnets is made from high perfermance N45 NdFeB. The dimesion is 15mm dia. x 15mm thick, Ni-Cu-Ni (Nickel) coating. Pull force: 30.38 lbs (13.81kg). Magnetization direction: Axial (Poles on Flat Ends)

C-D15H15-N45 Neodymium Magnet, 15x15mm Cylinder Magnet is made of Grade N45 NdFeB, Nickel Plated. The dimension is 15mm dia. x 15mm thick, Axial magnetized. Pull force is approximately 30.38 lbs (13.81kg).

Different grade, coating or magnetization direction can also be custom-made for this size. You can send us your inquiry for a quote. Discount can be applied for bulk quantities.

C-D15H15-N45

Data sheet

Item Number
C-D15H15-N45
Material
NdFeB
Grade
N45
Size
15mm dia. x 15mm thick
Tolerance
±0.004"(±0.1mm)
Coating
Nickel Plated
Magnetization Direction
Axial
Weight
19.880g
Pull Force
30.38 lbs (13.81kg)
Diameter
E. 12.7-19.05mm
Thickness
E. 12.7-19.05mm
