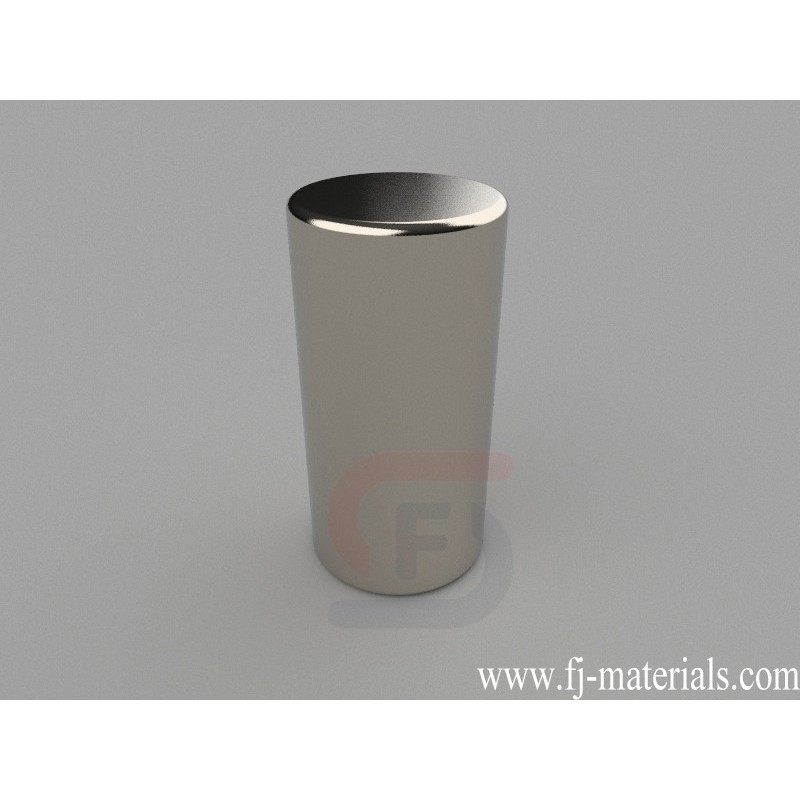

15mm dia. x 30mm thick Cylinder Magnets | C-D15H30-N35
C-D15H30-N35 Neodymium Magnet, 15x30mm Cylinder Magnet is made of Grade N35 NdFeB, Nickel Plated. The dimension is 15mm dia. x 30mm thick, Axial magnetized. Pull force is approximately 34.01 lbs (15.46kg).
C-D15H30-N35 Neodymium Disc Magnets is made from high perfermance N35 NdFeB. The dimesion is 15mm dia. x 30mm thick, Ni-Cu-Ni (Nickel) coating. Pull force: 34.01 lbs (15.46kg). Magnetization direction: Axial (Poles on Flat Ends)
C-D15H30-N35 Neodymium Magnet, 15x30mm Cylinder Magnet is made of Grade N35 NdFeB, Nickel Plated. The dimension is 15mm dia. x 30mm thick, Axial magnetized. Pull force is approximately 34.01 lbs (15.46kg).
Different grade, coating or magnetization direction can also be custom-made for this size. You can send us your inquiry for a quote. Discount can be applied for bulk quantities.
C-D15H30-N35
Data sheet
- Item Number
- C-D15H30-N35
- Material
- NdFeB
- Grade
- N35
- Size
- 15mm dia. x 30mm thick
- Tolerance
- ±0.004"(±0.1mm)
- Coating
- Nickel Plated
- Magnetization Direction
- Axial
- Weight
- 39.761g
- Pull Force
- 34.01 lbs (15.46kg)
- Diameter
- E. 12.7-19.05mm
- Thickness
- G. 25.4-50.8mm
C-D15H30-N35 Neodymium Magnet, 15x30mm Cylinder Magnet is made of Grade N35 NdFeB, Nickel Plated. The dimension is 15mm dia. x 30mm thick, Axial magnetized. Pull force is approximately 34.01 lbs (15.46kg).
