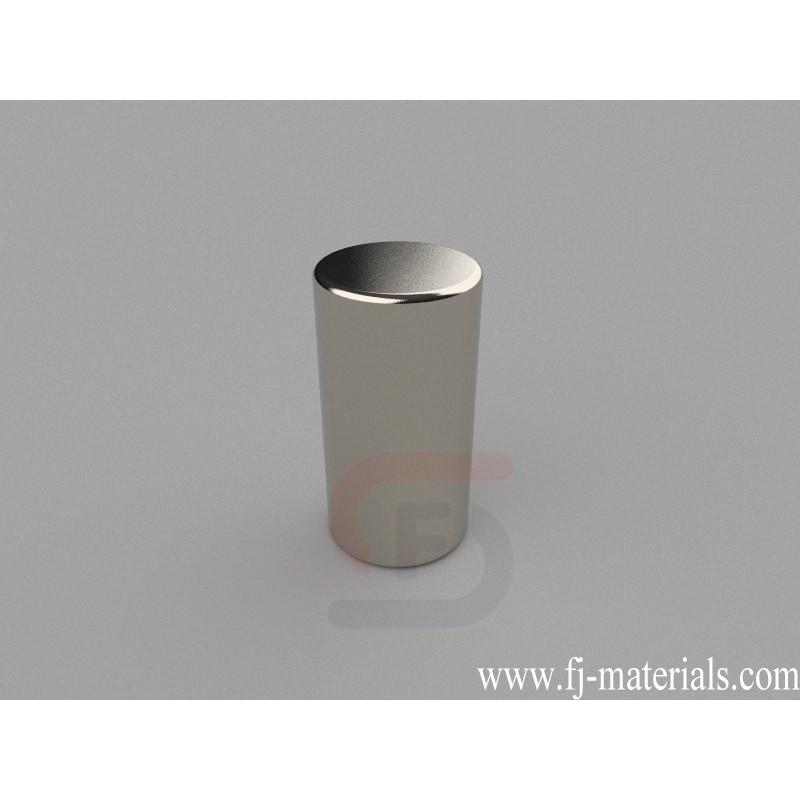

17.2mm dia. x 33.05mm thick Cylinder Magnets | C-D17.2H33.05-N50

C-D17.2H33.05-N50 Neodymium Magnet, 17.2x33.05mm Cylinder Magnet is made of Grade N50 NdFeB, Nickel Plated. The dimension is 17.2mm dia. x 33.05mm thick, Axial magnetized. Pull force is approximately 59.54 lbs (27.06kg).

C-D17.2H33.05-N50 Neodymium Disc Magnets is made from high perfermance N50 NdFeB. The dimesion is 17.2mm dia. x 33.05mm thick, Ni-Cu-Ni (Nickel) coating. Pull force: 59.54 lbs (27.06kg). Magnetization direction: Axial (Poles on Flat Ends)

C-D17.2H33.05-N50 Neodymium Magnet, 17.2x33.05mm Cylinder Magnet is made of Grade N50 NdFeB, Nickel Plated. The dimension is 17.2mm dia. x 33.05mm thick, Axial magnetized. Pull force is approximately 59.54 lbs (27.06kg).

Different grade, coating or magnetization direction can also be custom-made for this size. You can send us your inquiry for a quote. Discount can be applied for bulk quantities.

C-D17.2H33.05-N50

Data sheet

Item Number
C-D17.2H33.05-N50
Material
NdFeB
Grade
N50
Size
17.2mm dia. x 33.05mm thick
Tolerance
±0.004"(±0.1mm)
Coating
Nickel Plated
Magnetization Direction
Axial
Weight
57.594g
Pull Force
59.54 lbs (27.06kg)
Diameter
E. 12.7-19.05mm
Thickness
G. 25.4-50.8mm
