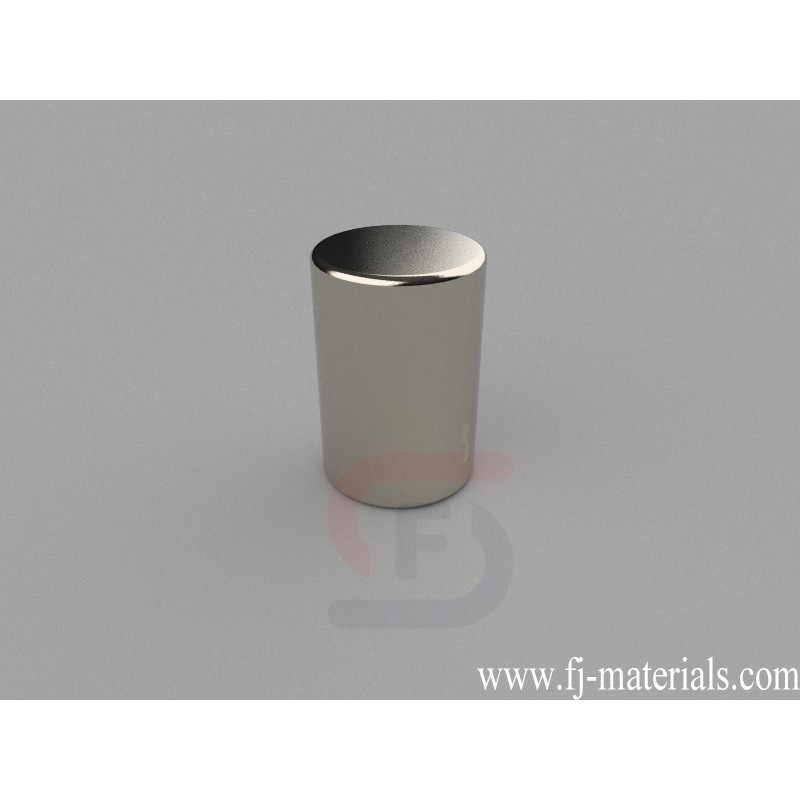

19mm dia. x 28.2mm thick Cylinder Magnets | C-D19H28.2-N42SH

C-D19H28.2-N42SH Neodymium Magnet, 19x28.2mm Cylinder Magnet is made of Grade N42SH NdFeB, Nickel Plated. The dimension is 19mm dia. x 28.2mm thick, Axial magnetized. Pull force is approximately 54.63 lbs (24.83kg).

C-D19H28.2-N42SH Neodymium Disc Magnets is made from high perfermance N42SH NdFeB. The dimesion is 19mm dia. x 28.2mm thick, Ni-Cu-Ni (Nickel) coating. Pull force: 54.63 lbs (24.83kg). Magnetization direction: Axial (Poles on Flat Ends)

C-D19H28.2-N42SH Neodymium Magnet, 19x28.2mm Cylinder Magnet is made of Grade N42SH NdFeB, Nickel Plated. The dimension is 19mm dia. x 28.2mm thick, Axial magnetized. Pull force is approximately 54.63 lbs (24.83kg).

Different grade, coating or magnetization direction can also be custom-made for this size. You can send us your inquiry for a quote. Discount can be applied for bulk quantities.

C-D19H28.2-N42SH

Data sheet

Item Number
C-D19H28.2-N42SH
Material
NdFeB
Grade
N42SH
Size
19mm dia. x 28.2mm thick
Tolerance
±0.004"(±0.1mm)
Coating
Nickel Plated
Magnetization Direction
Axial
Weight
59.966g
Pull Force
54.63 lbs (24.83kg)
Diameter
E. 12.7-19.05mm
Thickness
G. 25.4-50.8mm
