1mm dia. x 3mm thick Cylinder Magnets | C-D1H3-N50

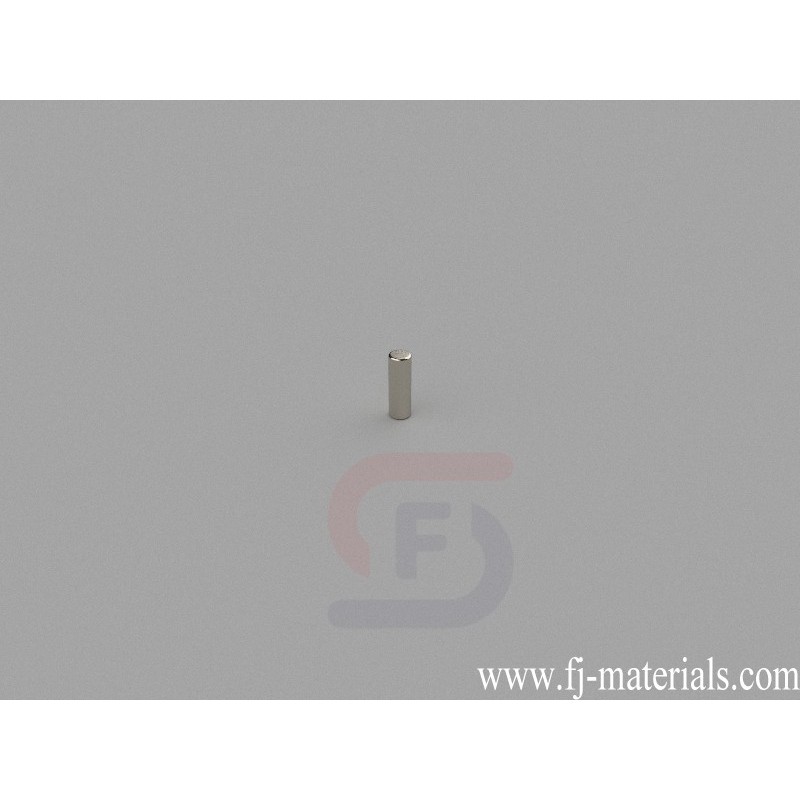

C-D1H3-N50 Neodymium Magnet, 1x3mm Cylinder Magnet is made of Grade N50 NdFeB, Nickel Plated. The dimension is 1mm dia. x 3mm thick, Axial magnetized. Pull force is approximately 0.33 lbs (0.15kg).
C-D1H3-N50 Neodymium Disc Magnets is made from high perfermance N50 NdFeB. The dimesion is 1mm dia. x 3mm thick, Ni-Cu-Ni (Nickel) coating. Pull force: 0.33 lbs (0.15kg). Magnetization direction: Axial (Poles on Flat Ends)
C-D1H3-N50 Neodymium Magnet, 1x3mm Cylinder Magnet is made of Grade N50 NdFeB, Nickel Plated. The dimension is 1mm dia. x 3mm thick, Axial magnetized. Pull force is approximately 0.33 lbs (0.15kg).
Different grade, coating or magnetization direction can also be custom-made for this size. You can send us your inquiry for a quote. Discount can be applied for bulk quantities.
C-D1H3-N50
Data sheet
- Item Number
- C-D1H3-N50
- Material
- NdFeB
- Grade
- N50
- Size
- 1mm dia. x 3mm thick
- Tolerance
- ±0.004"(±0.1mm)
- Coating
- Nickel Plated
- Magnetization Direction
- Axial
- Weight
- 0.018g
- Pull Force
- 0.33 lbs (0.15kg)
- Diameter
- A. 0.00-3.18mm
- Thickness
- A. 0.00-3.18mm
C-D1H3-N50 Neodymium Magnet, 1x3mm Cylinder Magnet is made of Grade N50 NdFeB, Nickel Plated. The dimension is 1mm dia. x 3mm thick, Axial magnetized. Pull force is approximately 0.33 lbs (0.15kg).
