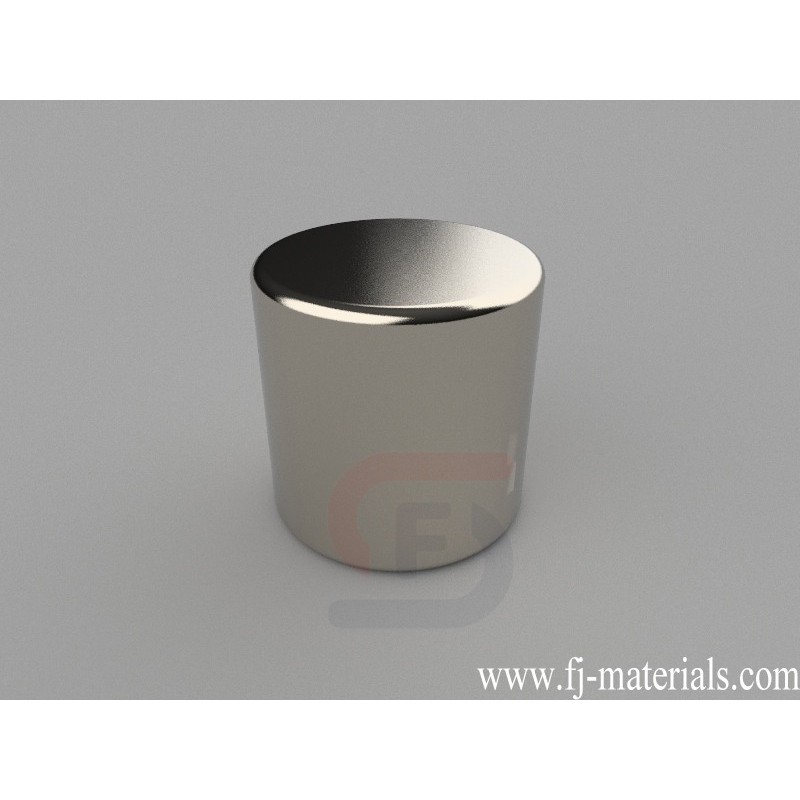

20mm dia. x 20mm thick Cylinder Magnets | C-D20H20-N40

C-D20H20-N40 Neodymium Magnet, 20x20mm Cylinder Magnet is made of Grade N40 NdFeB, Nickel Plated. The dimension is 20mm dia. x 20mm thick, Axial magnetized. Pull force is approximately 47.21 lbs (21.46kg).

C-D20H20-N40 Neodymium Disc Magnets is made from high perfermance N40 NdFeB. The dimesion is 20mm dia. x 20mm thick, Ni-Cu-Ni (Nickel) coating. Pull force: 47.21 lbs (21.46kg). Magnetization direction: Axial (Poles on Flat Ends)

C-D20H20-N40 Neodymium Magnet, 20x20mm Cylinder Magnet is made of Grade N40 NdFeB, Nickel Plated. The dimension is 20mm dia. x 20mm thick, Axial magnetized. Pull force is approximately 47.21 lbs (21.46kg).

Different grade, coating or magnetization direction can also be custom-made for this size. You can send us your inquiry for a quote. Discount can be applied for bulk quantities.

C-D20H20-N40

Data sheet

Item Number
C-D20H20-N40
Material
NdFeB
Grade
N40
Size
20mm dia. x 20mm thick
Tolerance
±0.004"(±0.1mm)
Coating
Nickel Plated
Magnetization Direction
Axial
Weight
47.124g
Pull Force
47.21 lbs (21.46kg)
Diameter
F. 19.05-25.4mm
Thickness
F. 19.05-25.4mm
