  • C-D25.4H25.4-N42

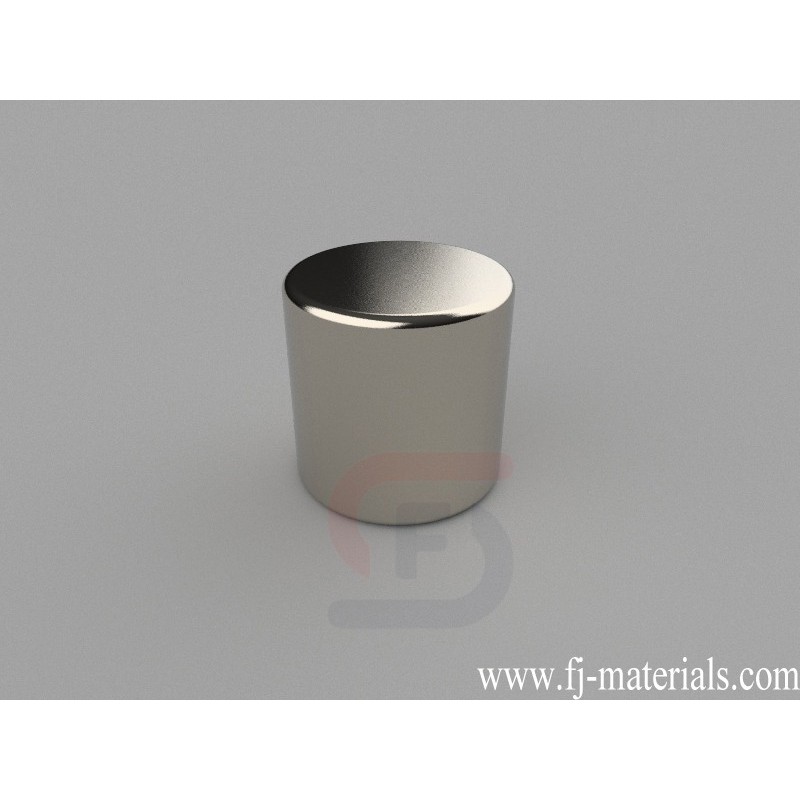

25.4mm dia. x 25.4mm thick Cylinder Magnets | C-D25.4H25.4-N42

C-D25.4H25.4-N42 Neodymium Magnet, 25.4x25.4mm Cylinder Magnet is made of Grade N42 NdFeB, Nickel Plated. The dimension is 25.4mm dia. x 25.4mm thick, Axial magnetized. Pull force is approximately 77.85 lbs (35.39kg).

C-D25.4H25.4-N42 Neodymium Disc Magnets is made from high perfermance N42 NdFeB. The dimesion is 25.4mm dia. x 25.4mm thick, Ni-Cu-Ni (Nickel) coating. Pull force: 77.85 lbs (35.39kg). Magnetization direction: Axial (Poles on Flat Ends)

C-D25.4H25.4-N42 Neodymium Magnet, 25.4x25.4mm Cylinder Magnet is made of Grade N42 NdFeB, Nickel Plated. The dimension is 25.4mm dia. x 25.4mm thick, Axial magnetized. Pull force is approximately 77.85 lbs (35.39kg).

Different grade, coating or magnetization direction can also be custom-made for this size. You can send us your inquiry for a quote. Discount can be applied for bulk quantities.

C-D25.4H25.4-N42

Data sheet

Item Number
C-D25.4H25.4-N42
Material
NdFeB
Grade
N42
Size
25.4mm dia. x 25.4mm thick
Tolerance
±0.004"(±0.1mm)
Coating
Nickel Plated
Magnetization Direction
Axial
Weight
96.528g
Pull Force
77.85 lbs (35.39kg)
Diameter
F. 19.05-25.4mm
Thickness
F. 19.05-25.4mm

Inquiry

Please describe the product(s) which you would like to get more information/quotation about.
* These fields are required. Without such information, we are not able to process your inquiry. Our minimum order amount is USD300.
