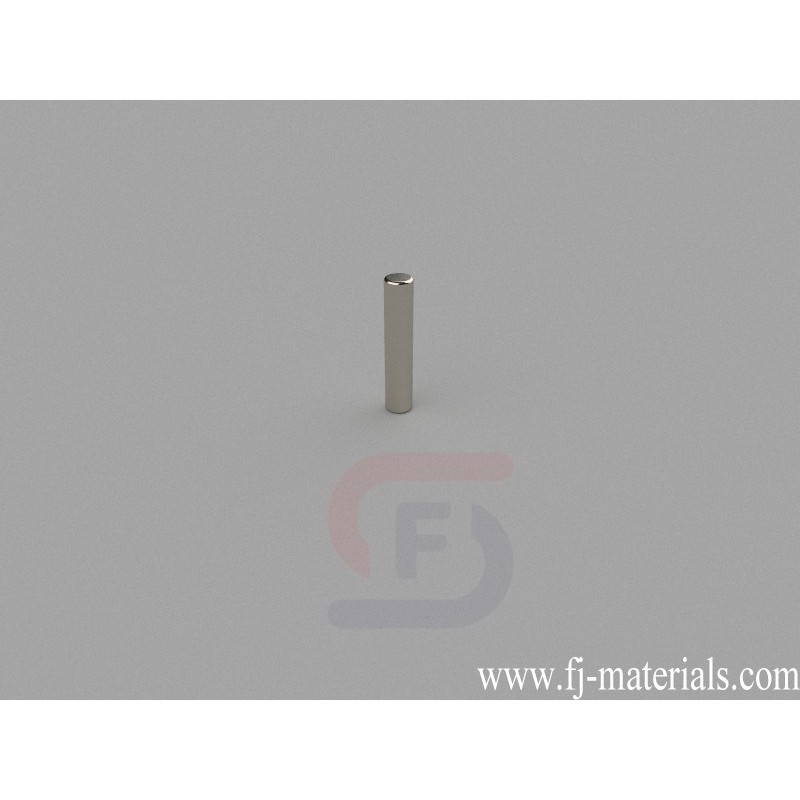

2mm dia. x 10mm thick Cylinder Magnets | C-D2H10-N50

C-D2H10-N50 Neodymium Magnet, 2x10mm Cylinder Magnet is made of Grade N50 NdFeB, Nickel Plated. The dimension is 2mm dia. x 10mm thick, Axial magnetized. Pull force is approximately 1.61 lbs (0.73kg).

C-D2H10-N50 Neodymium Disc Magnets is made from high perfermance N50 NdFeB. The dimesion is 2mm dia. x 10mm thick, Ni-Cu-Ni (Nickel) coating. Pull force: 1.61 lbs (0.73kg). Magnetization direction: Axial (Poles on Flat Ends)

C-D2H10-N50 Neodymium Magnet, 2x10mm Cylinder Magnet is made of Grade N50 NdFeB, Nickel Plated. The dimension is 2mm dia. x 10mm thick, Axial magnetized. Pull force is approximately 1.61 lbs (0.73kg).

Different grade, coating or magnetization direction can also be custom-made for this size. You can send us your inquiry for a quote. Discount can be applied for bulk quantities.

C-D2H10-N50

Data sheet

Item Number
C-D2H10-N50
Material
NdFeB
Grade
N50
Size
2mm dia. x 10mm thick
Tolerance
±0.004"(±0.1mm)
Coating
Nickel Plated
Magnetization Direction
Axial
Weight
0.236g
Pull Force
1.61 lbs (0.73kg)
Diameter
A. 0.00-3.18mm
Thickness
D. 9.53-12.7mm

Inquiry

Please describe the product(s) which you would like to get more information/quotation about.
* These fields are required. Without such information, we are not able to process your inquiry. Our minimum order amount is USD300.
