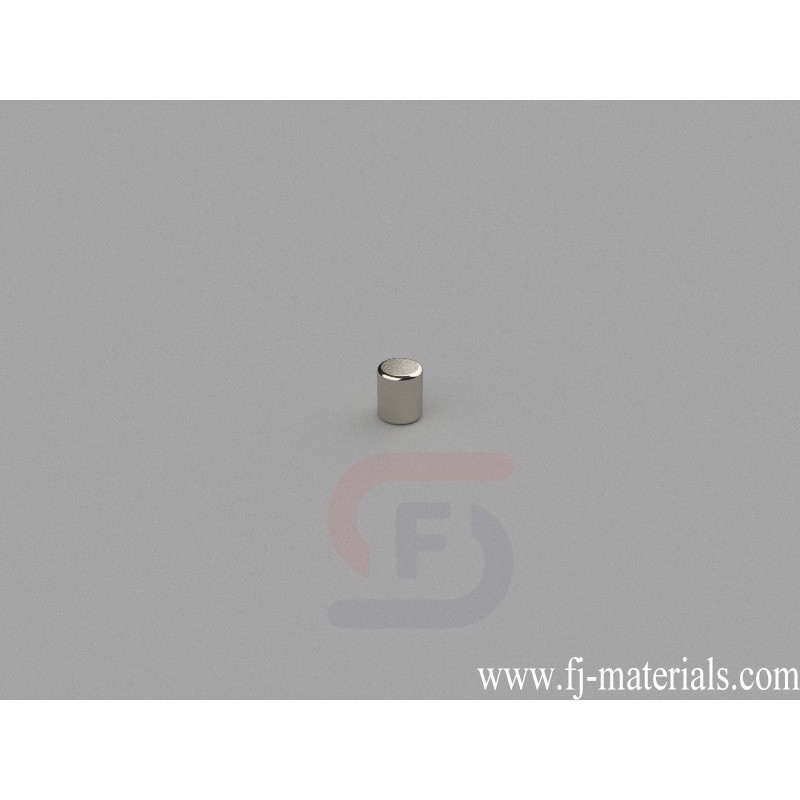

2mm dia. x 2.4mm thick Cylinder Magnets | C-D2H2.4-N50PC

C-D2H2.4-N50PC Neodymium Magnet, 2x2.4mm Cylinder Magnet is made of Grade N50 NdFeB, Parylene C. The dimension is 2mm dia. x 2.4mm thick, Axial magnetized. Pull force is approximately 0.79 lbs (0.36kg).

C-D2H2.4-N50PC Neodymium Disc Magnets is made from high perfermance N50 NdFeB. The dimesion is 2mm dia. x 2.4mm thick, Parylene C coating. Pull force: 0.79 lbs (0.36kg). Magnetization direction: Axial (Poles on Flat Ends)

C-D2H2.4-N50PC Neodymium Magnet, 2x2.4mm Cylinder Magnet is made of Grade N50 NdFeB, Parylene C. The dimension is 2mm dia. x 2.4mm thick, Axial magnetized. Pull force is approximately 0.79 lbs (0.36kg).

Different grade, coating or magnetization direction can also be custom-made for this size. You can send us your inquiry for a quote. Discount can be applied for bulk quantities.

C-D2H2.4-N50PC

Data sheet

Item Number
C-D2H2.4-N50PC
Material
NdFeB
Grade
N50
Size
2mm dia. x 2.4mm thick
Tolerance
±0.004"(±0.1mm)
Coating
Parylene C
Magnetization Direction
Axial
Weight
0.057g
Pull Force
0.79 lbs (0.36kg)
Diameter
A. 0.00-3.18mm
Thickness
A. 0.00-3.18mm
