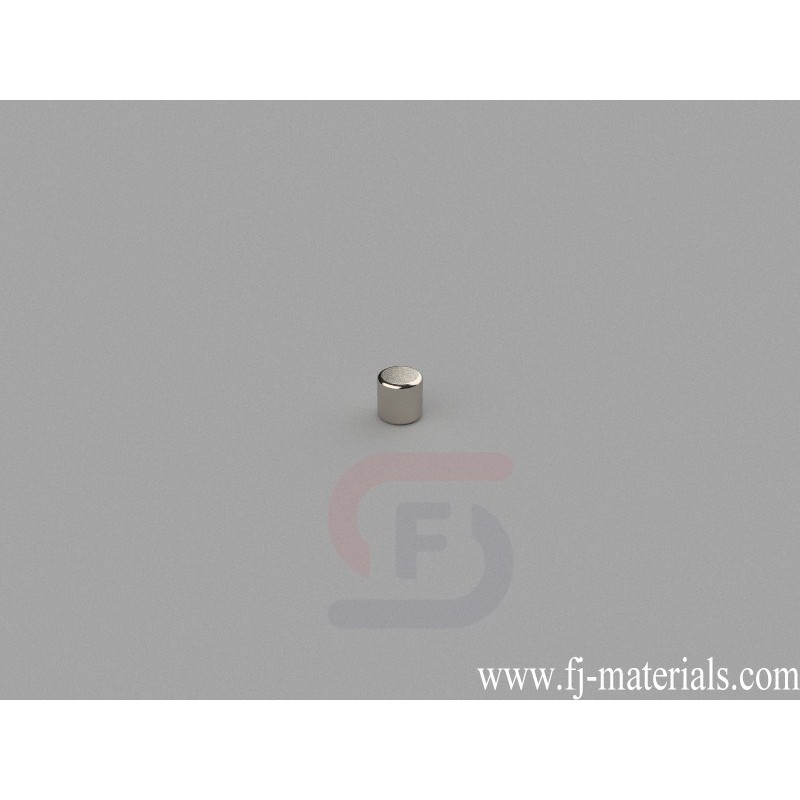

2mm dia. x 2mm thick Cylinder Magnets | C-D2H2-N48

C-D2H2-N48 Neodymium Magnet, 2x2mm Cylinder Magnet is made of Grade N48 NdFeB, Nickel Plated. The dimension is 2mm dia. x 2mm thick, Axial magnetized. Pull force is approximately 0.70 lbs (0.32kg).

C-D2H2-N48 Neodymium Disc Magnets is made from high perfermance N48 NdFeB. The dimesion is 2mm dia. x 2mm thick, Ni-Cu-Ni (Nickel) coating. Pull force: 0.70 lbs (0.32kg). Magnetization direction: Axial (Poles on Flat Ends)

C-D2H2-N48 Neodymium Magnet, 2x2mm Cylinder Magnet is made of Grade N48 NdFeB, Nickel Plated. The dimension is 2mm dia. x 2mm thick, Axial magnetized. Pull force is approximately 0.70 lbs (0.32kg).

Different grade, coating or magnetization direction can also be custom-made for this size. You can send us your inquiry for a quote. Discount can be applied for bulk quantities.

C-D2H2-N48

Data sheet

Item Number
C-D2H2-N48
Material
NdFeB
Grade
N48
Size
2mm dia. x 2mm thick
Tolerance
±0.004"(±0.1mm)
Coating
Nickel Plated
Magnetization Direction
Axial
Weight
0.047g
Pull Force
0.70 lbs (0.32kg)
Diameter
A. 0.00-3.18mm
Thickness
A. 0.00-3.18mm
