2mm dia. x 3mm thick Cylinder Magnets | C-D2H3-N45

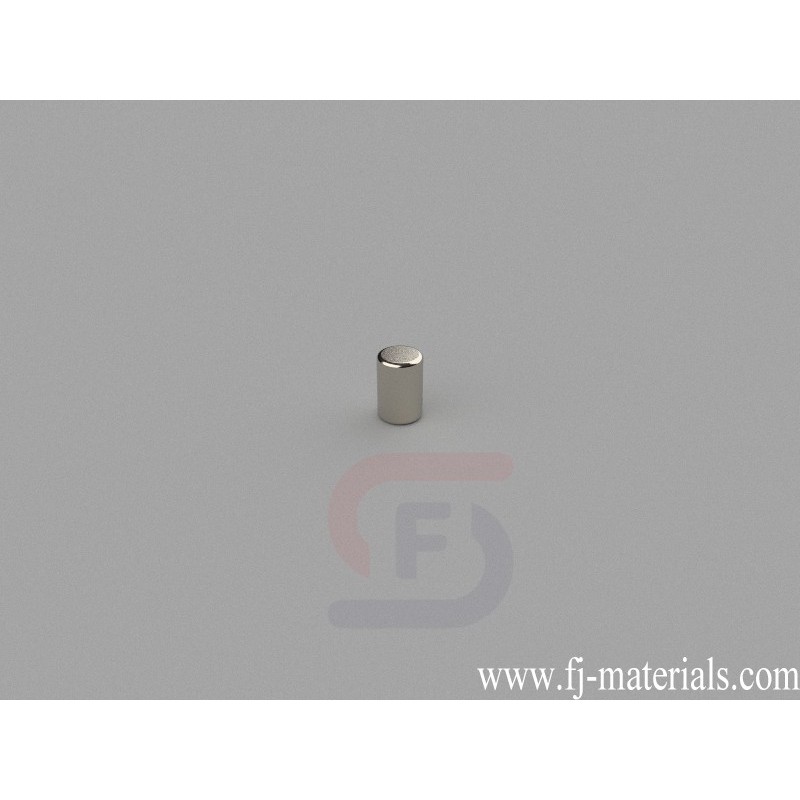

C-D2H3-N45 Neodymium Magnet, 2x3mm Cylinder Magnet is made of Grade N45 NdFeB, Nickel Plated. The dimension is 2mm dia. x 3mm thick, Axial magnetized. Pull force is approximately 0.81 lbs (0.37kg).
C-D2H3-N45 Neodymium Disc Magnets is made from high perfermance N45 NdFeB. The dimesion is 2mm dia. x 3mm thick, Ni-Cu-Ni (Nickel) coating. Pull force: 0.81 lbs (0.37kg). Magnetization direction: Axial (Poles on Flat Ends)
C-D2H3-N45 Neodymium Magnet, 2x3mm Cylinder Magnet is made of Grade N45 NdFeB, Nickel Plated. The dimension is 2mm dia. x 3mm thick, Axial magnetized. Pull force is approximately 0.81 lbs (0.37kg).
Different grade, coating or magnetization direction can also be custom-made for this size. You can send us your inquiry for a quote. Discount can be applied for bulk quantities.
C-D2H3-N45
Data sheet
- Item Number
- C-D2H3-N45
- Material
- NdFeB
- Grade
- N45
- Size
- 2mm dia. x 3mm thick
- Tolerance
- ±0.004"(±0.1mm)
- Coating
- Nickel Plated
- Magnetization Direction
- Axial
- Weight
- 0.071g
- Pull Force
- 0.81 lbs (0.37kg)
- Diameter
- A. 0.00-3.18mm
- Thickness
- A. 0.00-3.18mm
C-D2H3-N45 Neodymium Magnet, 2x3mm Cylinder Magnet is made of Grade N45 NdFeB, Nickel Plated. The dimension is 2mm dia. x 3mm thick, Axial magnetized. Pull force is approximately 0.81 lbs (0.37kg).
