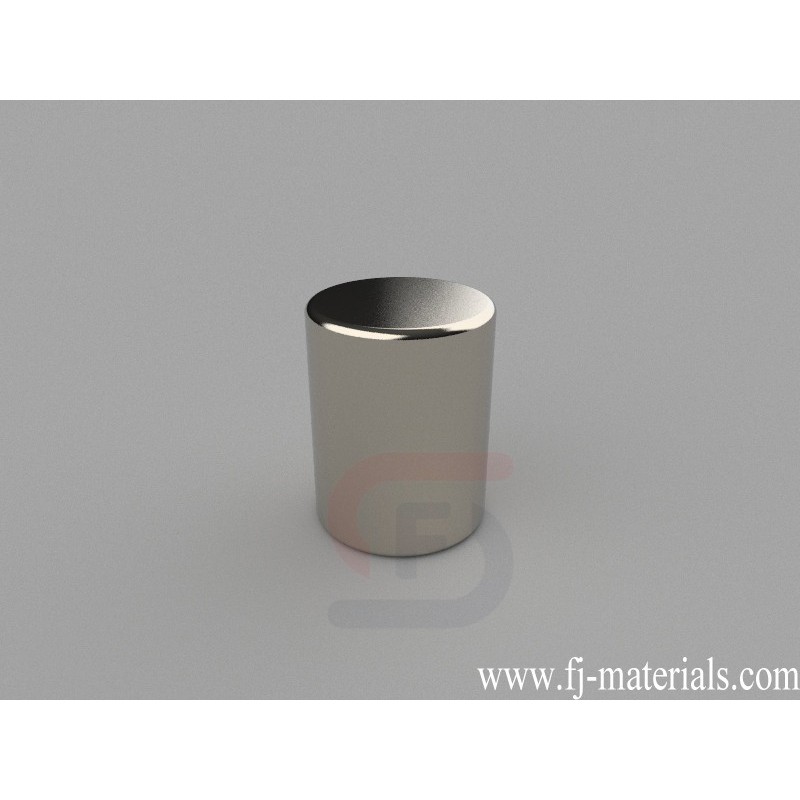

39.37mm dia. x 50.8mm thick Cylinder Magnets | C-D39.37H50.8-N50

C-D39.37H50.8-N50 Neodymium Magnet, 39.37x50.8mm Cylinder Magnet is made of Grade N50 NdFeB, Nickel Plated. The dimension is 39.37mm dia. x 50.8mm thick, Axial magnetized. Pull force is approximately 235.32 lbs (106.96kg).

C-D39.37H50.8-N50 Neodymium Disc Magnets is made from high perfermance N50 NdFeB. The dimesion is 39.37mm dia. x 50.8mm thick, Ni-Cu-Ni (Nickel) coating. Pull force: 235.32 lbs (106.96kg). Magnetization direction: Axial (Poles on Flat Ends)

C-D39.37H50.8-N50 Neodymium Magnet, 39.37x50.8mm Cylinder Magnet is made of Grade N50 NdFeB, Nickel Plated. The dimension is 39.37mm dia. x 50.8mm thick, Axial magnetized. Pull force is approximately 235.32 lbs (106.96kg).

Different grade, coating or magnetization direction can also be custom-made for this size. You can send us your inquiry for a quote. Discount can be applied for bulk quantities.

C-D39.37H50.8-N50

Data sheet

Item Number
C-D39.37H50.8-N50
Material
NdFeB
Grade
N50
Size
39.37mm dia. x 50.8mm thick
Tolerance
±0.004"(±0.1mm)
Coating
Nickel Plated
Magnetization Direction
Axial
Weight
463.816g
Pull Force
235.32 lbs (106.96kg)
Diameter
G. 25.4-50.8mm
Thickness
G. 25.4-50.8mm
