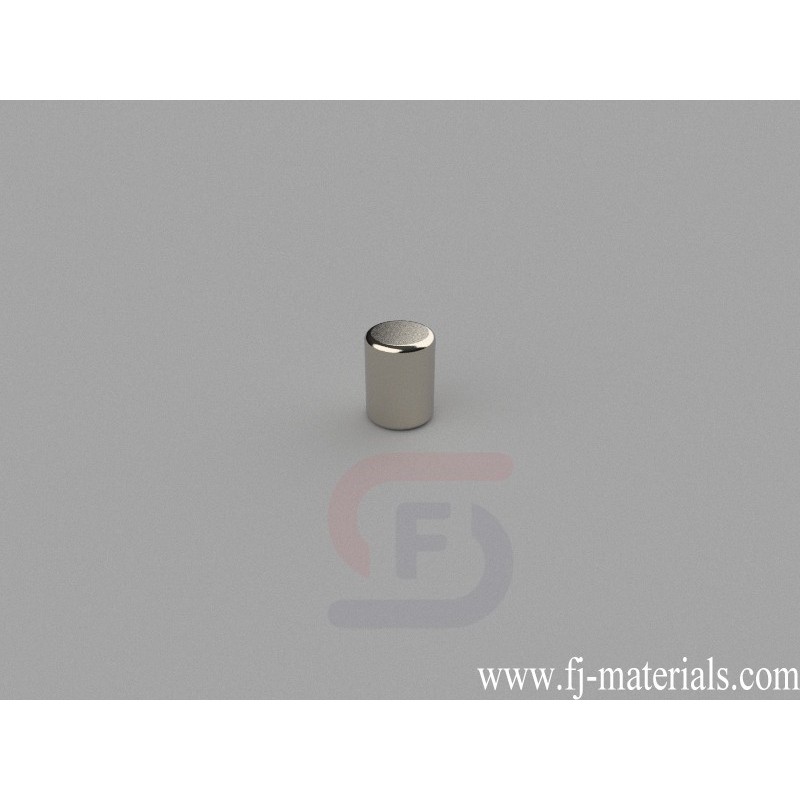

3mm dia. x 4mm thick Cylinder Magnets | C-D3H4-N50

C-D3H4-N50 Neodymium Magnet, 3x4mm Cylinder Magnet is made of Grade N50 NdFeB, Nickel Plated. The dimension is 3mm dia. x 4mm thick, Axial magnetized. Pull force is approximately 1.80 lbs (0.82kg).

C-D3H4-N50 Neodymium Disc Magnets is made from high perfermance N50 NdFeB. The dimesion is 3mm dia. x 4mm thick, Ni-Cu-Ni (Nickel) coating. Pull force: 1.80 lbs (0.82kg). Magnetization direction: Axial (Poles on Flat Ends)

C-D3H4-N50 Neodymium Magnet, 3x4mm Cylinder Magnet is made of Grade N50 NdFeB, Nickel Plated. The dimension is 3mm dia. x 4mm thick, Axial magnetized. Pull force is approximately 1.80 lbs (0.82kg).

Different grade, coating or magnetization direction can also be custom-made for this size. You can send us your inquiry for a quote. Discount can be applied for bulk quantities.

C-D3H4-N50

Data sheet

Item Number
C-D3H4-N50
Material
NdFeB
Grade
N50
Size
3mm dia. x 4mm thick
Tolerance
±0.004"(±0.1mm)
Coating
Nickel Plated
Magnetization Direction
Axial
Weight
0.212g
Pull Force
1.80 lbs (0.82kg)
Diameter
A. 0.00-3.18mm
Thickness
B. 3.18-6.35mm
