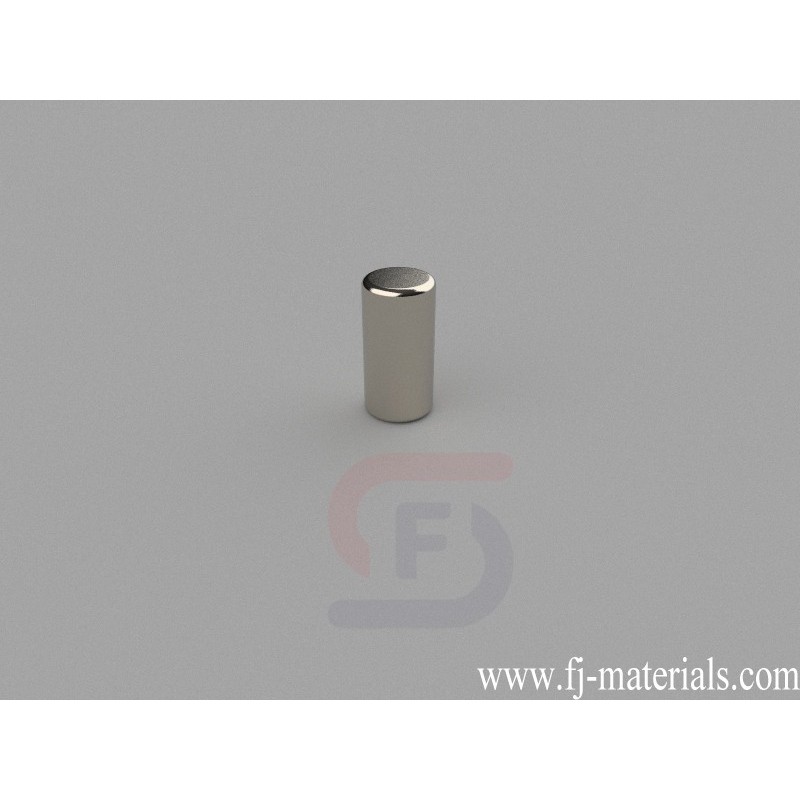

5mm dia. x 10mm thick Cylinder Magnets | C-D5H10-N45
C-D5H10-N45 Neodymium Magnet, 5x10mm Cylinder Magnet is made of Grade N45 NdFeB, Nickel Plated. The dimension is 5mm dia. x 10mm thick, Axial magnetized. Pull force is approximately 5.33 lbs (2.42kg).
C-D5H10-N45 Neodymium Disc Magnets is made from high perfermance N45 NdFeB. The dimesion is 5mm dia. x 10mm thick, Ni-Cu-Ni (Nickel) coating. Pull force: 5.33 lbs (2.42kg). Magnetization direction: Axial (Poles on Flat Ends)
C-D5H10-N45 Neodymium Magnet, 5x10mm Cylinder Magnet is made of Grade N45 NdFeB, Nickel Plated. The dimension is 5mm dia. x 10mm thick, Axial magnetized. Pull force is approximately 5.33 lbs (2.42kg).
Different grade, coating or magnetization direction can also be custom-made for this size. You can send us your inquiry for a quote. Discount can be applied for bulk quantities.
C-D5H10-N45
Data sheet
- Item Number
- C-D5H10-N45
- Material
- NdFeB
- Grade
- N45
- Size
- 5mm dia. x 10mm thick
- Tolerance
- ±0.004"(±0.1mm)
- Coating
- Nickel Plated
- Magnetization Direction
- Axial
- Weight
- 1.473g
- Pull Force
- 5.33 lbs (2.42kg)
- Diameter
- B. 3.18-6.35mm
- Thickness
- D. 9.53-12.7mm
C-D5H10-N45 Neodymium Magnet, 5x10mm Cylinder Magnet is made of Grade N45 NdFeB, Nickel Plated. The dimension is 5mm dia. x 10mm thick, Axial magnetized. Pull force is approximately 5.33 lbs (2.42kg).
