5mm dia. x 20mm thick Cylinder Magnets | C-D5H20-N45

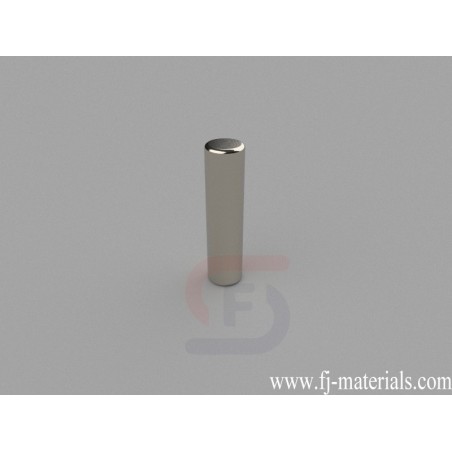

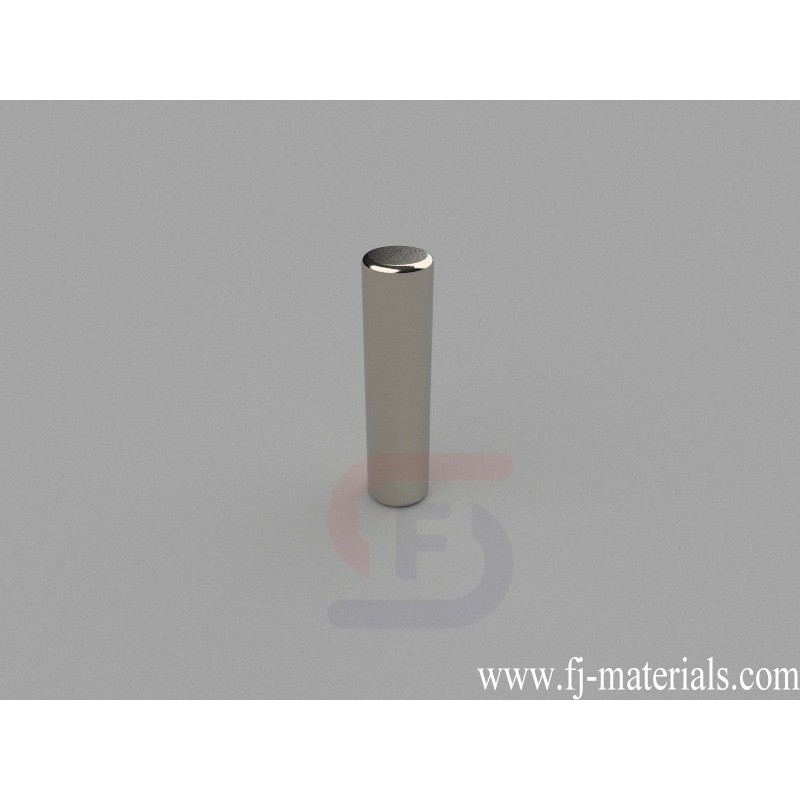

C-D5H20-N45 Neodymium Magnet, 5x20mm Cylinder Magnet is made of Grade N45 NdFeB, Nickel Plated. The dimension is 5mm dia. x 20mm thick, Axial magnetized. Pull force is approximately 7.53 lbs (3.42kg).

C-D5H20-N45 Neodymium Disc Magnets is made from high perfermance N45 NdFeB. The dimesion is 5mm dia. x 20mm thick, Ni-Cu-Ni (Nickel) coating. Pull force: 7.53 lbs (3.42kg). Magnetization direction: Axial (Poles on Flat Ends)

C-D5H20-N45 Neodymium Magnet, 5x20mm Cylinder Magnet is made of Grade N45 NdFeB, Nickel Plated. The dimension is 5mm dia. x 20mm thick, Axial magnetized. Pull force is approximately 7.53 lbs (3.42kg).

Different grade, coating or magnetization direction can also be custom-made for this size. You can send us your inquiry for a quote. Discount can be applied for bulk quantities.

C-D5H20-N45

Data sheet

Item Number
C-D5H20-N45
Material
NdFeB
Grade
N45
Size
5mm dia. x 20mm thick
Tolerance
±0.004"(±0.1mm)
Coating
Nickel Plated
Magnetization Direction
Axial
Weight
2.945g
Pull Force
7.53 lbs (3.42kg)
Diameter
B. 3.18-6.35mm
Thickness
F. 19.05-25.4mm
