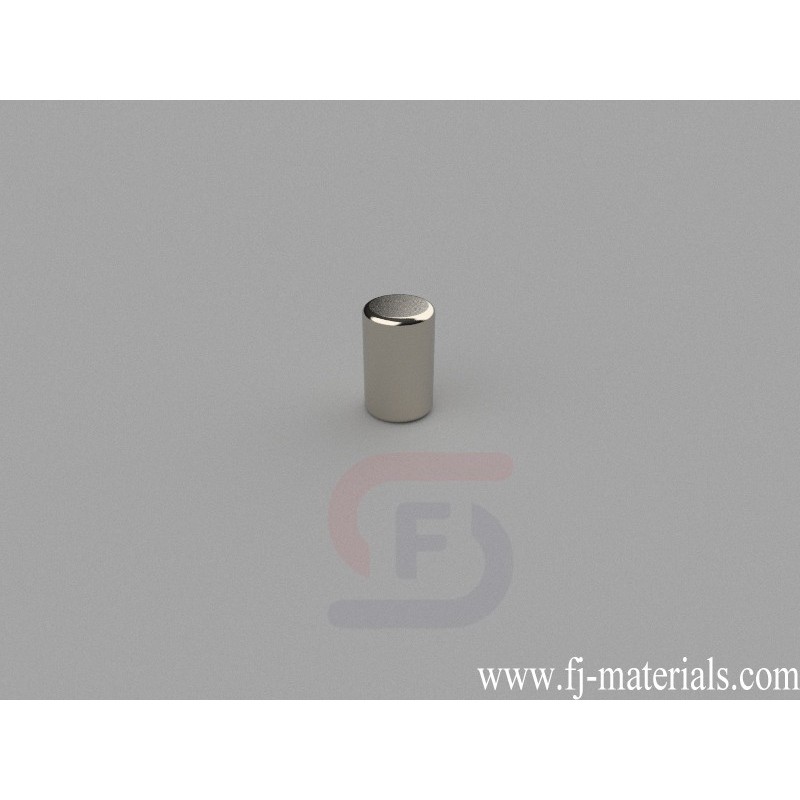

5mm dia. x 8mm thick Cylinder Magnets | C-D5H8-N35

C-D5H8-N35 Neodymium Magnet, 5x8mm Cylinder Magnet is made of Grade N35 NdFeB, Nickel Plated. The dimension is 5mm dia. x 8mm thick, Axial magnetized. Pull force is approximately 3.77 lbs (1.71kg).

C-D5H8-N35 Neodymium Disc Magnets is made from high perfermance N35 NdFeB. The dimesion is 5mm dia. x 8mm thick, Ni-Cu-Ni (Nickel) coating. Pull force: 3.77 lbs (1.71kg). Magnetization direction: Axial (Poles on Flat Ends)

C-D5H8-N35 Neodymium Magnet, 5x8mm Cylinder Magnet is made of Grade N35 NdFeB, Nickel Plated. The dimension is 5mm dia. x 8mm thick, Axial magnetized. Pull force is approximately 3.77 lbs (1.71kg).

Different grade, coating or magnetization direction can also be custom-made for this size. You can send us your inquiry for a quote. Discount can be applied for bulk quantities.

C-D5H8-N35

Data sheet

Item Number
C-D5H8-N35
Material
NdFeB
Grade
N35
Size
5mm dia. x 8mm thick
Tolerance
±0.004"(±0.1mm)
Coating
Nickel Plated
Magnetization Direction
Axial
Weight
1.178g
Pull Force
3.77 lbs (1.71kg)
Diameter
B. 3.18-6.35mm
Thickness
C. 6.35-9.53mm
