5mm dia. x 8mm thick Cylinder Magnets | C-D5H8-N42UH

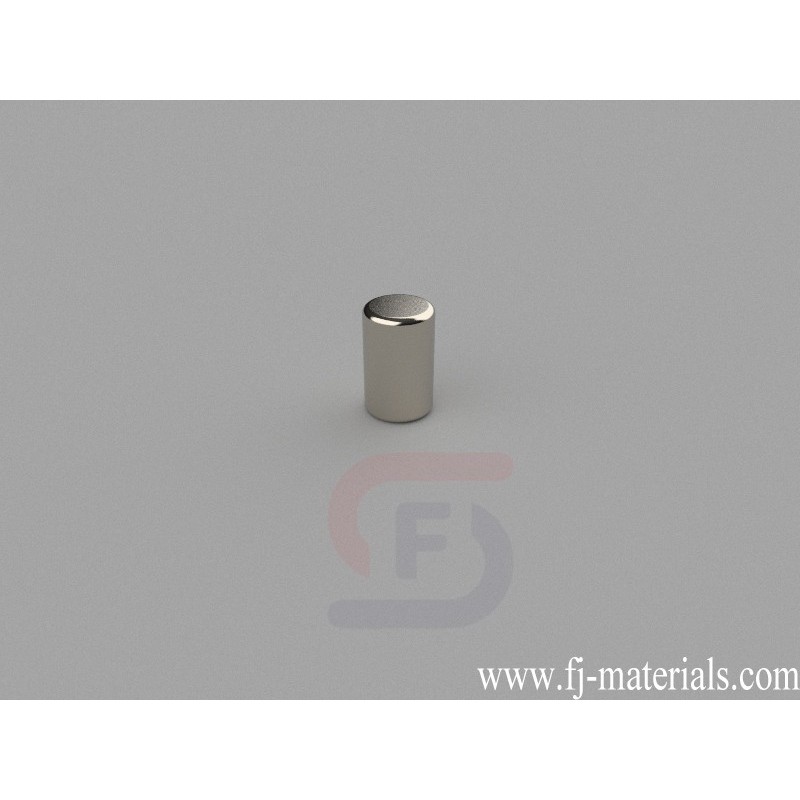

C-D5H8-N42UH Neodymium Magnet, 5x8mm Cylinder Magnet is made of Grade N42UH NdFeB, Nickel Plated. The dimension is 5mm dia. x 8mm thick, Axial magnetized. Pull force is approximately 4.49 lbs (2.04kg).
C-D5H8-N42UH Neodymium Disc Magnets is made from high perfermance N42UH NdFeB. The dimesion is 5mm dia. x 8mm thick, Ni-Cu-Ni (Nickel) coating. Pull force: 4.49 lbs (2.04kg). Magnetization direction: Axial (Poles on Flat Ends)
C-D5H8-N42UH Neodymium Magnet, 5x8mm Cylinder Magnet is made of Grade N42UH NdFeB, Nickel Plated. The dimension is 5mm dia. x 8mm thick, Axial magnetized. Pull force is approximately 4.49 lbs (2.04kg).
Different grade, coating or magnetization direction can also be custom-made for this size. You can send us your inquiry for a quote. Discount can be applied for bulk quantities.
C-D5H8-N42UH
Data sheet
- Item Number
- C-D5H8-N42UH
- Material
- NdFeB
- Grade
- N42UH
- Size
- 5mm dia. x 8mm thick
- Tolerance
- ±0.004"(±0.1mm)
- Coating
- Nickel Plated
- Magnetization Direction
- Axial
- Weight
- 1.178g
- Pull Force
- 4.49 lbs (2.04kg)
- Diameter
- B. 3.18-6.35mm
- Thickness
- C. 6.35-9.53mm
C-D5H8-N42UH Neodymium Magnet, 5x8mm Cylinder Magnet is made of Grade N42UH NdFeB, Nickel Plated. The dimension is 5mm dia. x 8mm thick, Axial magnetized. Pull force is approximately 4.49 lbs (2.04kg).
