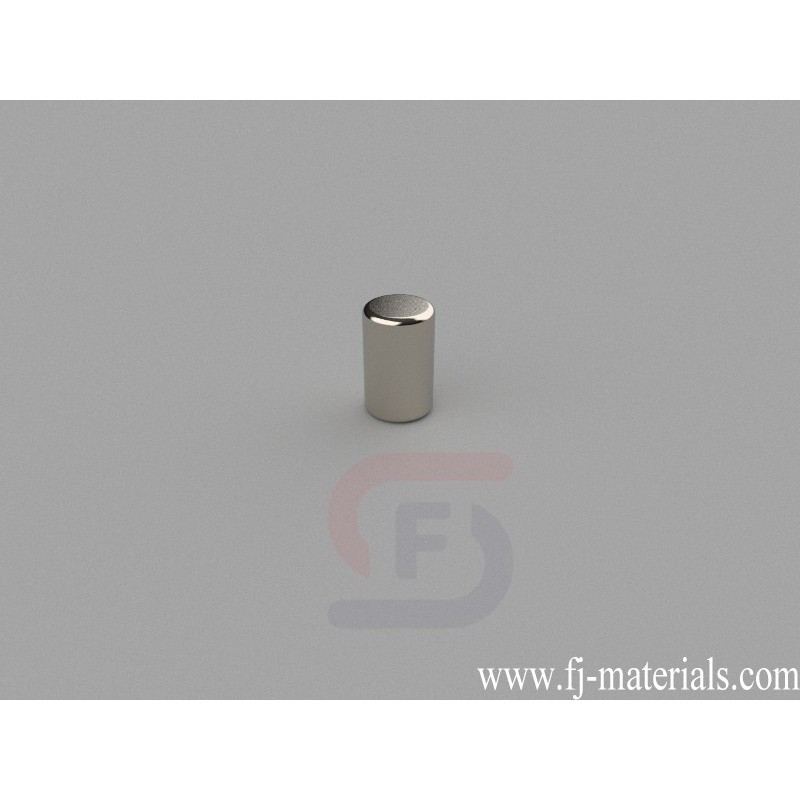

5mm dia. x 8mm thick Cylinder Magnets | C-D5H8-N45
C-D5H8-N45 Neodymium Magnet, 5x8mm Cylinder Magnet is made of Grade N45 NdFeB, Nickel Plated. The dimension is 5mm dia. x 8mm thick, Axial magnetized. Pull force is approximately 4.77 lbs (2.17kg).
C-D5H8-N45 Neodymium Disc Magnets is made from high perfermance N45 NdFeB. The dimesion is 5mm dia. x 8mm thick, Ni-Cu-Ni (Nickel) coating. Pull force: 4.77 lbs (2.17kg). Magnetization direction: Axial (Poles on Flat Ends)
C-D5H8-N45 Neodymium Magnet, 5x8mm Cylinder Magnet is made of Grade N45 NdFeB, Nickel Plated. The dimension is 5mm dia. x 8mm thick, Axial magnetized. Pull force is approximately 4.77 lbs (2.17kg).
Different grade, coating or magnetization direction can also be custom-made for this size. You can send us your inquiry for a quote. Discount can be applied for bulk quantities.
C-D5H8-N45
Data sheet
- Item Number
- C-D5H8-N45
- Material
- NdFeB
- Grade
- N45
- Size
- 5mm dia. x 8mm thick
- Tolerance
- ±0.004"(±0.1mm)
- Coating
- Nickel Plated
- Magnetization Direction
- Axial
- Weight
- 1.178g
- Pull Force
- 4.77 lbs (2.17kg)
- Diameter
- B. 3.18-6.35mm
- Thickness
- C. 6.35-9.53mm
C-D5H8-N45 Neodymium Magnet, 5x8mm Cylinder Magnet is made of Grade N45 NdFeB, Nickel Plated. The dimension is 5mm dia. x 8mm thick, Axial magnetized. Pull force is approximately 4.77 lbs (2.17kg).
