6.35mm dia. x 20mm thick Cylinder Magnets | C-D6.35H20-N42

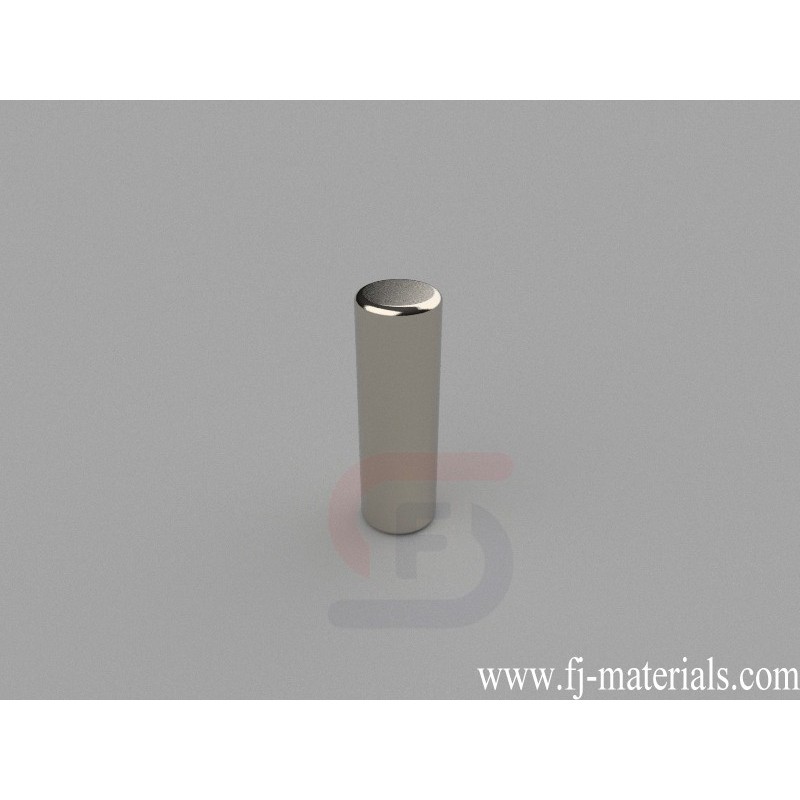

C-D6.35H20-N42 Neodymium Magnet, 6.35x20mm Cylinder Magnet is made of Grade N42 NdFeB, Nickel Plated. The dimension is 6.35mm dia. x 20mm thick, Axial magnetized. Pull force is approximately 9.92 lbs (4.51kg).
C-D6.35H20-N42 Neodymium Disc Magnets is made from high perfermance N42 NdFeB. The dimesion is 6.35mm dia. x 20mm thick, Ni-Cu-Ni (Nickel) coating. Pull force: 9.92 lbs (4.51kg). Magnetization direction: Axial (Poles on Flat Ends)
C-D6.35H20-N42 Neodymium Magnet, 6.35x20mm Cylinder Magnet is made of Grade N42 NdFeB, Nickel Plated. The dimension is 6.35mm dia. x 20mm thick, Axial magnetized. Pull force is approximately 9.92 lbs (4.51kg).
Different grade, coating or magnetization direction can also be custom-made for this size. You can send us your inquiry for a quote. Discount can be applied for bulk quantities.
C-D6.35H20-N42
Data sheet
- Item Number
- C-D6.35H20-N42
- Material
- NdFeB
- Grade
- N42
- Size
- 6.35mm dia. x 20mm thick
- Tolerance
- ±0.004"(±0.1mm)
- Coating
- Nickel Plated
- Magnetization Direction
- Axial
- Weight
- 4.750g
- Pull Force
- 9.92 lbs (4.51kg)
- Diameter
- B. 3.18-6.35mm
- Thickness
- F. 19.05-25.4mm
C-D6.35H20-N42 Neodymium Magnet, 6.35x20mm Cylinder Magnet is made of Grade N42 NdFeB, Nickel Plated. The dimension is 6.35mm dia. x 20mm thick, Axial magnetized. Pull force is approximately 9.92 lbs (4.51kg).
