6.85mm dia. x 15mm thick Cylinder Magnets | C-D6.85H15-N50M

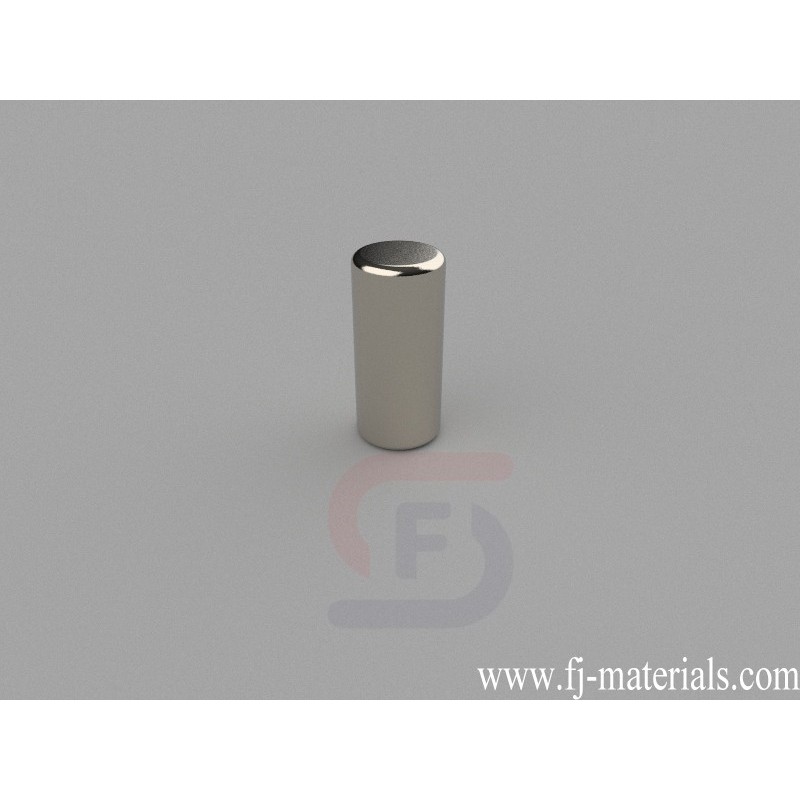

C-D6.85H15-N50M Neodymium Magnet, 6.85x15mm Cylinder Magnet is made of Grade N50M NdFeB, Nickel Plated. The dimension is 6.85mm dia. x 15mm thick, Axial magnetized. Pull force is approximately 11.53 lbs (5.24kg).
C-D6.85H15-N50M Neodymium Disc Magnets is made from high perfermance N50M NdFeB. The dimesion is 6.85mm dia. x 15mm thick, Ni-Cu-Ni (Nickel) coating. Pull force: 11.53 lbs (5.24kg). Magnetization direction: Axial (Poles on Flat Ends)
C-D6.85H15-N50M Neodymium Magnet, 6.85x15mm Cylinder Magnet is made of Grade N50M NdFeB, Nickel Plated. The dimension is 6.85mm dia. x 15mm thick, Axial magnetized. Pull force is approximately 11.53 lbs (5.24kg).
Different grade, coating or magnetization direction can also be custom-made for this size. You can send us your inquiry for a quote. Discount can be applied for bulk quantities.
C-D6.85H15-N50M
Data sheet
- Item Number
- C-D6.85H15-N50M
- Material
- NdFeB
- Grade
- N50M
- Size
- 6.85mm dia. x 15mm thick
- Tolerance
- ±0.004"(±0.1mm)
- Coating
- Nickel Plated
- Magnetization Direction
- Axial
- Weight
- 4.146g
- Pull Force
- 11.53 lbs (5.24kg)
- Diameter
- C. 6.35-9.53mm
- Thickness
- E. 12.7-19.05mm
C-D6.85H15-N50M Neodymium Magnet, 6.85x15mm Cylinder Magnet is made of Grade N50M NdFeB, Nickel Plated. The dimension is 6.85mm dia. x 15mm thick, Axial magnetized. Pull force is approximately 11.53 lbs (5.24kg).
