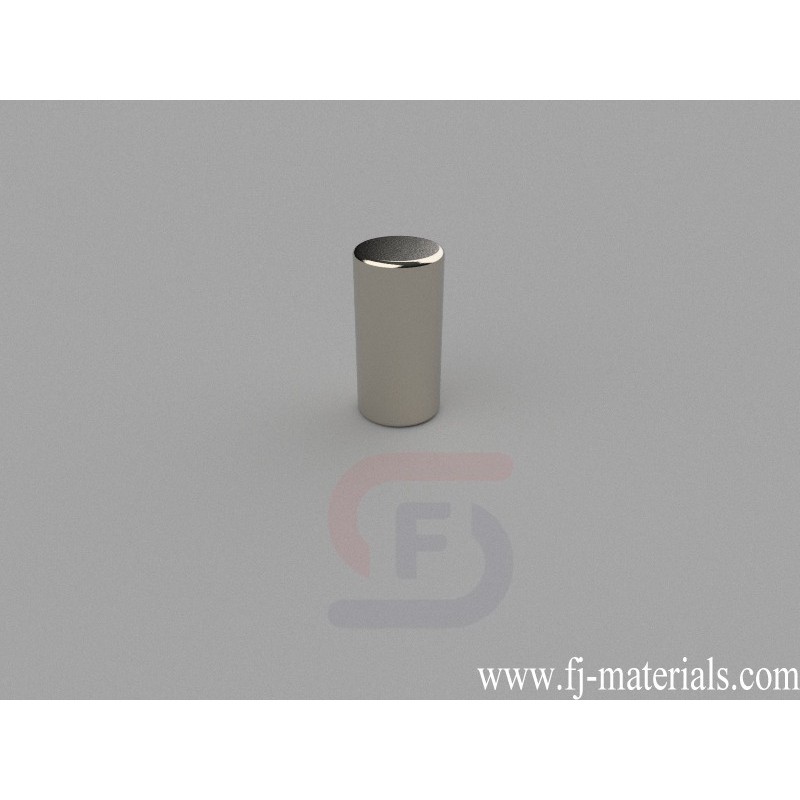

6mm dia. x 12mm thick Cylinder Magnets | C-D6H12-N52Au-DIA
C-D6H12-N52Au-DIA Neodymium Magnet, 6x12mm Cylinder Magnet is made of Grade N52 NdFeB, Gold Plated. The dimension is 6mm dia. x 12mm thick, Diametric magnetized. Pull force is approximately 8.45 lbs (3.84kg).
C-D6H12-N52Au-DIA Neodymium Disc Magnets is made from high perfermance N52 NdFeB. The dimesion is 6mm dia. x 12mm thick, Gold (Au) coating. Pull force: 8.45 lbs (3.84kg). Magnetization direction: Diametrical magnetized
C-D6H12-N52Au-DIA Neodymium Magnet, 6x12mm Cylinder Magnet is made of Grade N52 NdFeB, Gold Plated. The dimension is 6mm dia. x 12mm thick, Diametric magnetized. Pull force is approximately 8.45 lbs (3.84kg).
Different grade, coating or magnetization direction can also be custom-made for this size. You can send us your inquiry for a quote. Discount can be applied for bulk quantities.
C-D6H12-N52Au-DIA
Data sheet
- Item Number
- C-D6H12-N52Au-DIA
- Material
- NdFeB
- Grade
- N52
- Size
- 6mm dia. x 12mm thick
- Tolerance
- ±0.004"(±0.1mm)
- Coating
- Gold Plated
- Magnetization Direction
- Diametric
- Weight
- 2.545g
- Pull Force
- 8.45 lbs (3.84kg)
- Diameter
- B. 3.18-6.35mm
- Thickness
- D. 9.53-12.7mm
C-D6H12-N52Au-DIA Neodymium Magnet, 6x12mm Cylinder Magnet is made of Grade N52 NdFeB, Gold Plated. The dimension is 6mm dia. x 12mm thick, Diametric magnetized. Pull force is approximately 8.45 lbs (3.84kg).
