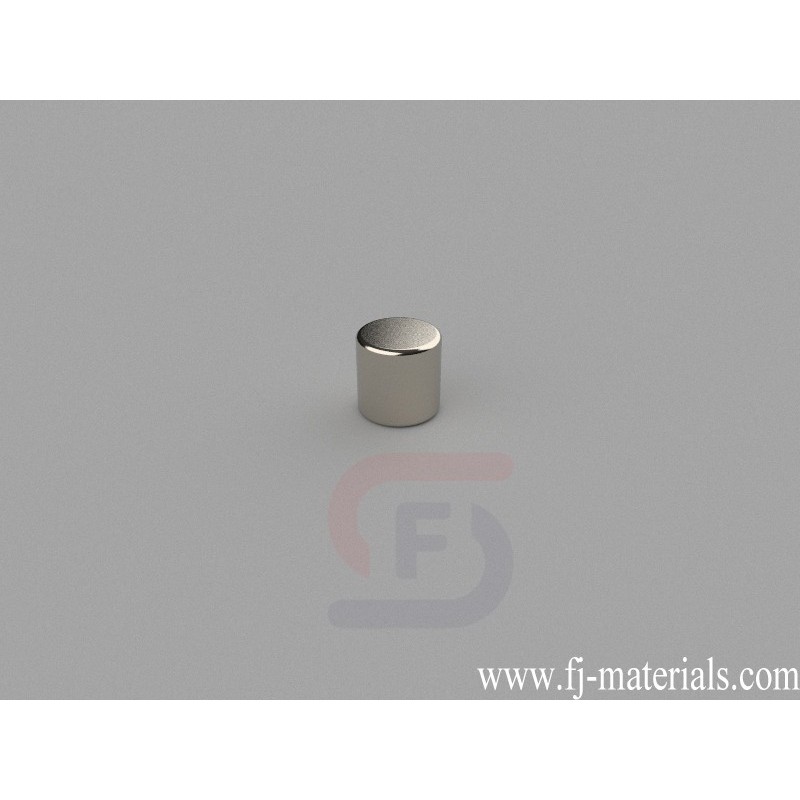

6mm dia. x 6mm thick Cylinder Magnets | C-D6H6-N38

C-D6H6-N38 Neodymium Magnet, 6x6mm Cylinder Magnet is made of Grade N38 NdFeB, Nickel Plated. The dimension is 6mm dia. x 6mm thick, Axial magnetized. Pull force is approximately 4.57 lbs (2.08kg).

C-D6H6-N38 Neodymium Disc Magnets is made from high perfermance N38 NdFeB. The dimesion is 6mm dia. x 6mm thick, Ni-Cu-Ni (Nickel) coating. Pull force: 4.57 lbs (2.08kg). Magnetization direction: Axial (Poles on Flat Ends)

C-D6H6-N38 Neodymium Magnet, 6x6mm Cylinder Magnet is made of Grade N38 NdFeB, Nickel Plated. The dimension is 6mm dia. x 6mm thick, Axial magnetized. Pull force is approximately 4.57 lbs (2.08kg).

Different grade, coating or magnetization direction can also be custom-made for this size. You can send us your inquiry for a quote. Discount can be applied for bulk quantities.

C-D6H6-N38

Data sheet

Item Number
C-D6H6-N38
Material
NdFeB
Grade
N38
Size
6mm dia. x 6mm thick
Tolerance
±0.004"(±0.1mm)
Coating
Nickel Plated
Magnetization Direction
Axial
Weight
1.272g
Pull Force
4.57 lbs (2.08kg)
Diameter
B. 3.18-6.35mm
Thickness
B. 3.18-6.35mm
