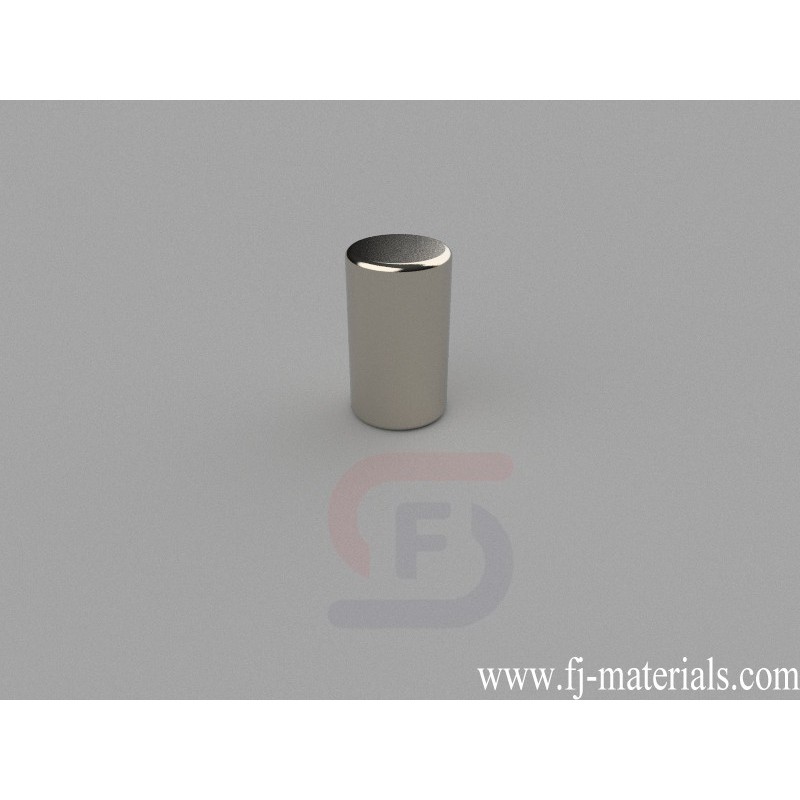

7mm dia. x 12mm thick Cylinder Magnets | C-D7H12-N48

C-D7H12-N48 Neodymium Magnet, 7x12mm Cylinder Magnet is made of Grade N48 NdFeB, Nickel Plated. The dimension is 7mm dia. x 12mm thick, Axial magnetized. Pull force is approximately 9.91 lbs (4.50kg).

C-D7H12-N48 Neodymium Disc Magnets is made from high perfermance N48 NdFeB. The dimesion is 7mm dia. x 12mm thick, Ni-Cu-Ni (Nickel) coating. Pull force: 9.91 lbs (4.50kg). Magnetization direction: Axial (Poles on Flat Ends)

C-D7H12-N48 Neodymium Magnet, 7x12mm Cylinder Magnet is made of Grade N48 NdFeB, Nickel Plated. The dimension is 7mm dia. x 12mm thick, Axial magnetized. Pull force is approximately 9.91 lbs (4.50kg).

Different grade, coating or magnetization direction can also be custom-made for this size. You can send us your inquiry for a quote. Discount can be applied for bulk quantities.

C-D7H12-N48

Data sheet

Item Number
C-D7H12-N48
Material
NdFeB
Grade
N48
Size
7mm dia. x 12mm thick
Tolerance
±0.004"(±0.1mm)
Coating
Nickel Plated
Magnetization Direction
Axial
Weight
3.464g
Pull Force
9.91 lbs (4.50kg)
Diameter
C. 6.35-9.53mm
Thickness
D. 9.53-12.7mm
