  • D10x10mm

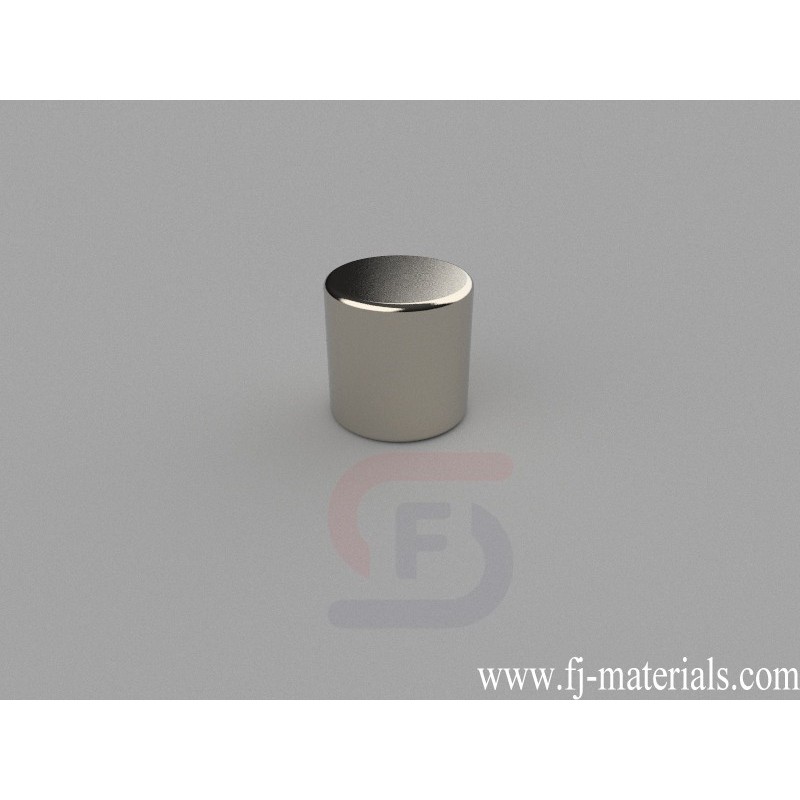

10mm dia. x 10mm thick Cylinder Magnets | D10x10mm

D10x10mm Neodymium Magnet, 10 x 10mm Cylinder Magnet is made of Grade N42 NdFeB, Nickel Plated. The dimension is 10mm dia. x 10mm thick, Axial magnetized. Pull force is approximately 13.25 lbs (6.02kg).

D10x10mm Neodymium Cylinder Magnets is made from high perfermance N42 NdFeB. The dimesion is 10mm dia. x 10mm thick, Ni-Cu-Ni (Nickel) coating. Pull force: 13.25 lbs (6.02kg). Magnetization direction: Axial (Poles on Flat Ends)

D10x10mm Neodymium Magnet, 10 x 10mm Cylinder Magnet is made of Grade N42 NdFeB, Nickel Plated. The dimension is 10mm dia. x 10mm thick, Axial magnetized. Pull force is approximately 13.25 lbs (6.02kg).

Different grade, coating or magnetization direction can also be custom-made for this size. You can send us your inquiry for a quote. Discount can be applied for bulk quantities.

D10x10mm

Data sheet

Item Number
D10x10mm
Material
NdFeB
Grade
N42
Size
10mm dia. x 10mm thick
Tolerance
±0.004"(±0.1mm)
Coating
Nickel Plated
Magnetization Direction
Axial
Weight
5.890g
Pull Force
13.25 lbs (6.02kg)
Diameter
D. 9.53-12.7mm
Thickness
D. 9.53-12.7mm

Inquiry

Please describe the product(s) which you would like to get more information/quotation about.
* These fields are required. Without such information, we are not able to process your inquiry. Our minimum order amount is USD300.
