10mm dia. x 30mm thick Cylinder Magnets | D10x30mm

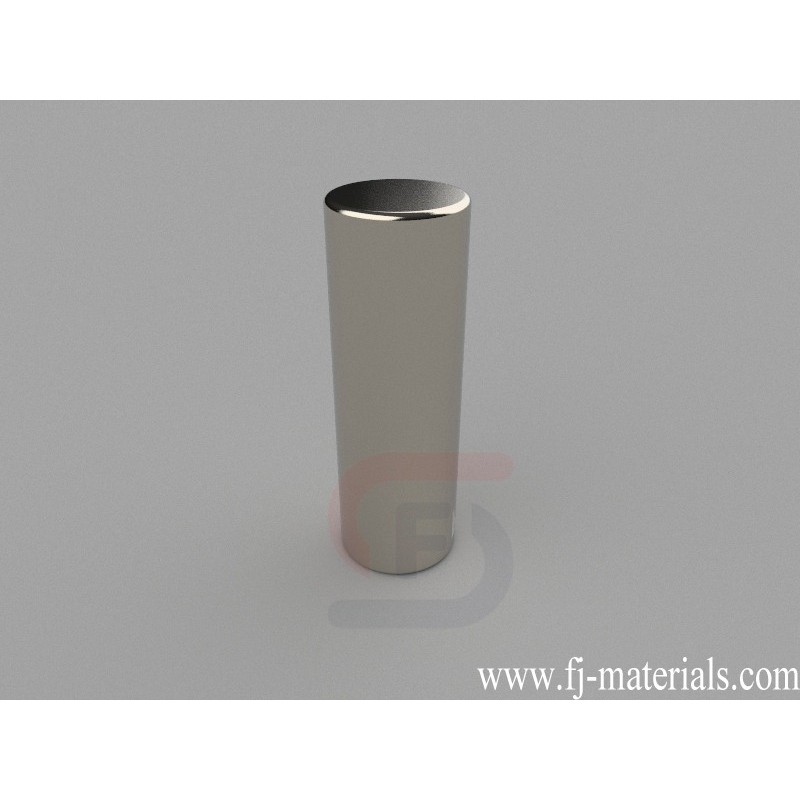

D10x30mm Neodymium Magnet, 10 x 30mm Cylinder Magnet is made of Grade N42 NdFeB, Nickel Plated. The dimension is 10mm dia. x 30mm thick, Axial magnetized. Pull force is approximately 22.94 lbs (10.43kg).
D10x30mm Neodymium Cylinder Magnets is made from high perfermance N42 NdFeB. The dimesion is 10mm dia. x 30mm thick, Ni-Cu-Ni (Nickel) coating. Pull force: 22.94 lbs (10.43kg). Magnetization direction: Axial (Poles on Flat Ends)
D10x30mm Neodymium Magnet, 10 x 30mm Cylinder Magnet is made of Grade N42 NdFeB, Nickel Plated. The dimension is 10mm dia. x 30mm thick, Axial magnetized. Pull force is approximately 22.94 lbs (10.43kg).
Different grade, coating or magnetization direction can also be custom-made for this size. You can send us your inquiry for a quote. Discount can be applied for bulk quantities.
D10x30mm
Data sheet
- Item Number
- D10x30mm
- Material
- NdFeB
- Grade
- N42
- Size
- 10mm dia. x 30mm thick
- Tolerance
- ±0.004"(±0.1mm)
- Coating
- Nickel Plated
- Magnetization Direction
- Axial
- Weight
- 17.671g
- Pull Force
- 22.94 lbs (10.43kg)
- Diameter
- D. 9.53-12.7mm
- Thickness
- G. 25.4-50.8mm
D10x30mm Neodymium Magnet, 10 x 30mm Cylinder Magnet is made of Grade N42 NdFeB, Nickel Plated. The dimension is 10mm dia. x 30mm thick, Axial magnetized. Pull force is approximately 22.94 lbs (10.43kg).
