12mm dia. x 16mm thick Cylinder Magnets | D12x16mm

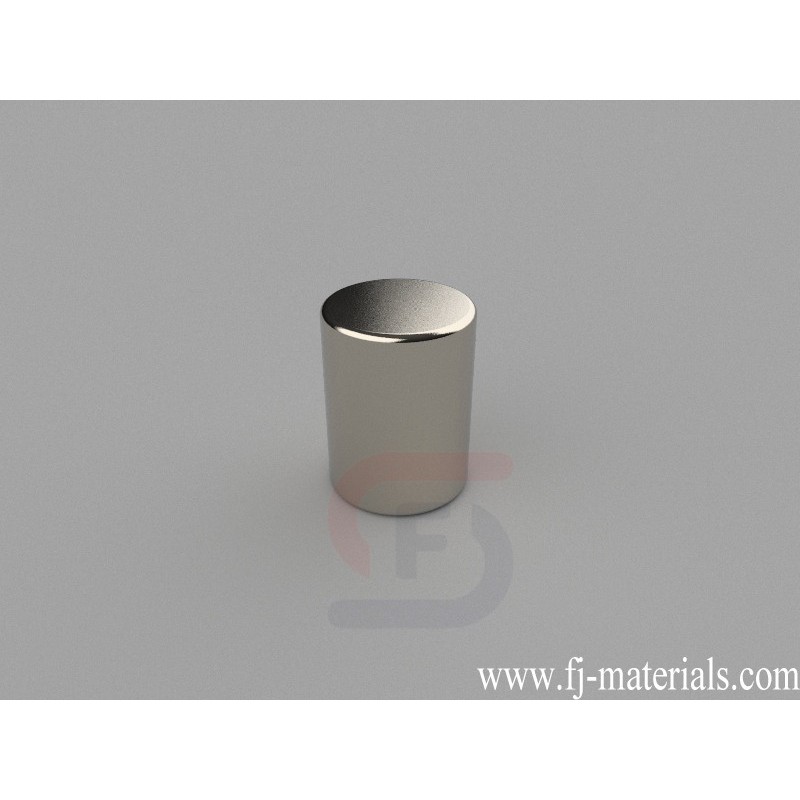

D12x16mm Neodymium Magnet, 12 x 16mm Cylinder Magnet is made of Grade N42 NdFeB, Nickel Plated. The dimension is 12mm dia. x 16mm thick, Axial magnetized. Pull force is approximately 21.63 lbs (9.83kg).
D12x16mm Neodymium Cylinder Magnets is made from high perfermance N42 NdFeB. The dimesion is 12mm dia. x 16mm thick, Ni-Cu-Ni (Nickel) coating. Pull force: 21.63 lbs (9.83kg). Magnetization direction: Axial (Poles on Flat Ends)
D12x16mm Neodymium Magnet, 12 x 16mm Cylinder Magnet is made of Grade N42 NdFeB, Nickel Plated. The dimension is 12mm dia. x 16mm thick, Axial magnetized. Pull force is approximately 21.63 lbs (9.83kg).
Different grade, coating or magnetization direction can also be custom-made for this size. You can send us your inquiry for a quote. Discount can be applied for bulk quantities.
D12x16mm
Data sheet
- Item Number
- D12x16mm
- Material
- NdFeB
- Grade
- N42
- Size
- 12mm dia. x 16mm thick
- Tolerance
- ±0.004"(±0.1mm)
- Coating
- Nickel Plated
- Magnetization Direction
- Axial
- Weight
- 13.572g
- Pull Force
- 21.63 lbs (9.83kg)
- Diameter
- D. 9.53-12.7mm
- Thickness
- E. 12.7-19.05mm
D12x16mm Neodymium Magnet, 12 x 16mm Cylinder Magnet is made of Grade N42 NdFeB, Nickel Plated. The dimension is 12mm dia. x 16mm thick, Axial magnetized. Pull force is approximately 21.63 lbs (9.83kg).
