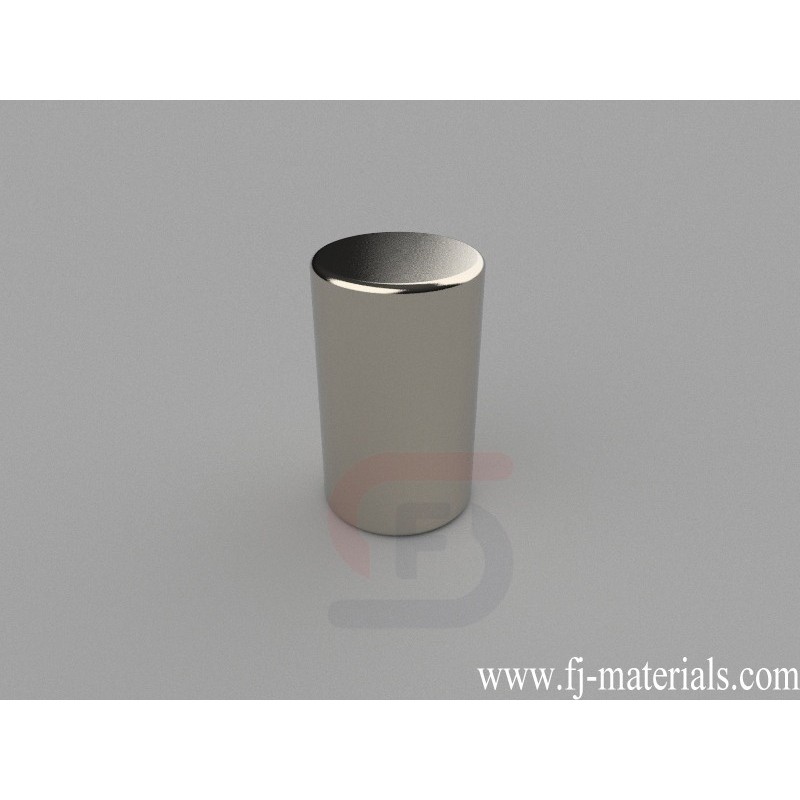

12mm dia. x 20mm thick Cylinder Magnets | D12x20mm

D12x20mm Neodymium Magnet, 12 x 20mm Cylinder Magnet is made of Grade N42 NdFeB, Nickel Plated. The dimension is 12mm dia. x 20mm thick, Axial magnetized. Pull force is approximately 24.18 lbs (10.99kg).

D12x20mm Neodymium Cylinder Magnets is made from high perfermance N42 NdFeB. The dimesion is 12mm dia. x 20mm thick, Ni-Cu-Ni (Nickel) coating. Pull force: 24.18 lbs (10.99kg). Magnetization direction: Axial (Poles on Flat Ends)

D12x20mm Neodymium Magnet, 12 x 20mm Cylinder Magnet is made of Grade N42 NdFeB, Nickel Plated. The dimension is 12mm dia. x 20mm thick, Axial magnetized. Pull force is approximately 24.18 lbs (10.99kg).

Different grade, coating or magnetization direction can also be custom-made for this size. You can send us your inquiry for a quote. Discount can be applied for bulk quantities.

D12x20mm

Data sheet

Item Number
D12x20mm
Material
NdFeB
Grade
N42
Size
12mm dia. x 20mm thick
Tolerance
±0.004"(±0.1mm)
Coating
Nickel Plated
Magnetization Direction
Axial
Weight
16.965g
Pull Force
24.18 lbs (10.99kg)
Diameter
D. 9.53-12.7mm
Thickness
F. 19.05-25.4mm
