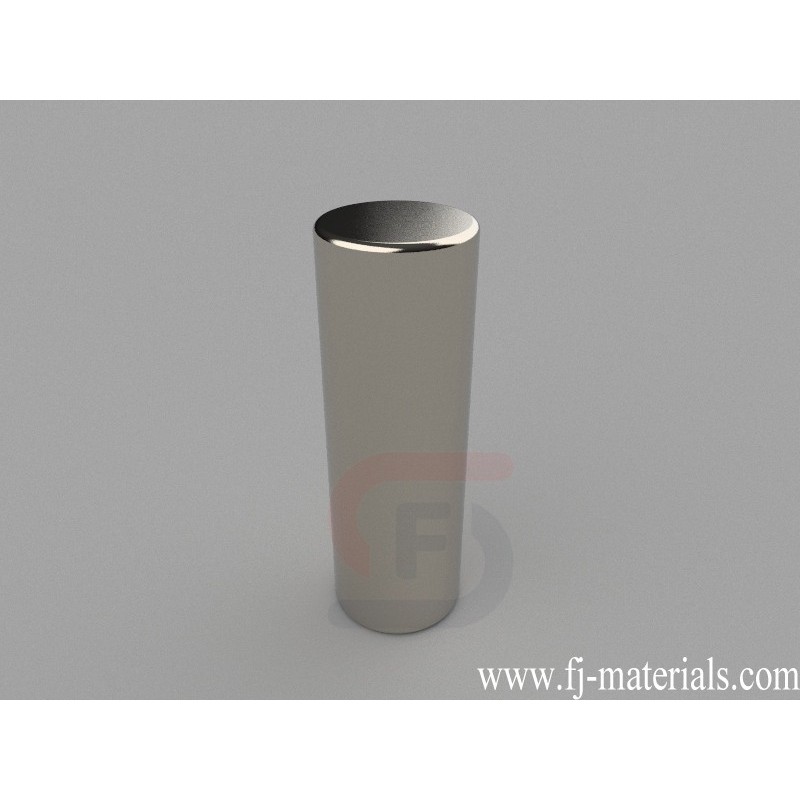

12mm dia. x 36mm thick Cylinder Magnets | D12x36mm
D12x36mm Neodymium Magnet, 12 x 36mm Cylinder Magnet is made of Grade N42 NdFeB, Nickel Plated. The dimension is 12mm dia. x 36mm thick, Axial magnetized. Pull force is approximately 32.44 lbs (14.74kg).
D12x36mm Neodymium Cylinder Magnets is made from high perfermance N42 NdFeB. The dimesion is 12mm dia. x 36mm thick, Ni-Cu-Ni (Nickel) coating. Pull force: 32.44 lbs (14.74kg). Magnetization direction: Axial (Poles on Flat Ends)
D12x36mm Neodymium Magnet, 12 x 36mm Cylinder Magnet is made of Grade N42 NdFeB, Nickel Plated. The dimension is 12mm dia. x 36mm thick, Axial magnetized. Pull force is approximately 32.44 lbs (14.74kg).
Different grade, coating or magnetization direction can also be custom-made for this size. You can send us your inquiry for a quote. Discount can be applied for bulk quantities.
D12x36mm
Data sheet
- Item Number
- D12x36mm
- Material
- NdFeB
- Grade
- N42
- Size
- 12mm dia. x 36mm thick
- Tolerance
- ±0.004"(±0.1mm)
- Coating
- Nickel Plated
- Magnetization Direction
- Axial
- Weight
- 30.536g
- Pull Force
- 32.44 lbs (14.74kg)
- Diameter
- D. 9.53-12.7mm
- Thickness
- G. 25.4-50.8mm
D12x36mm Neodymium Magnet, 12 x 36mm Cylinder Magnet is made of Grade N42 NdFeB, Nickel Plated. The dimension is 12mm dia. x 36mm thick, Axial magnetized. Pull force is approximately 32.44 lbs (14.74kg).
