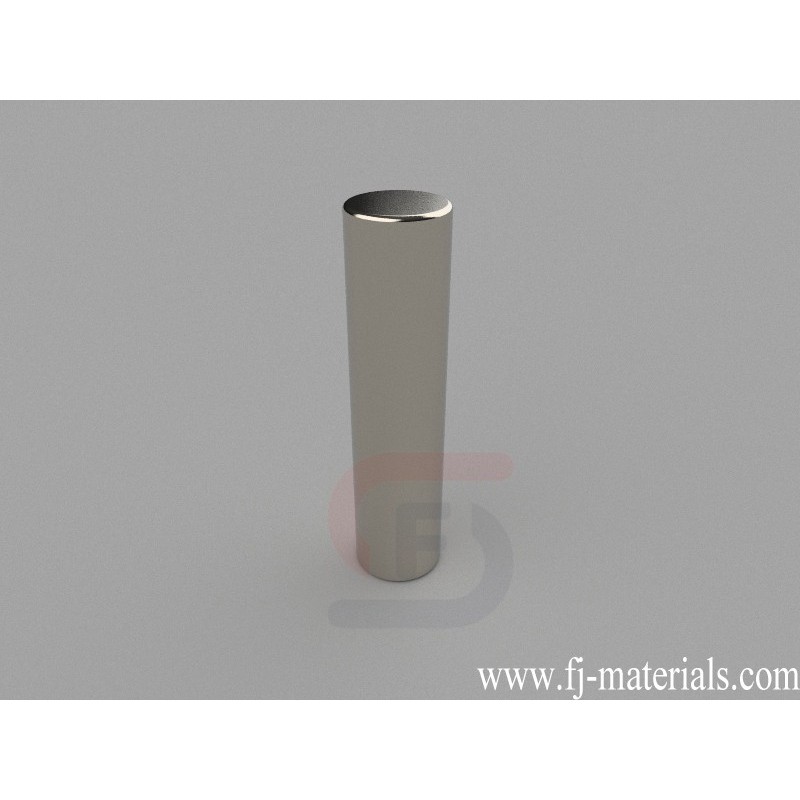

12mm dia. x 50mm thick Cylinder Magnets | D12x50mm

D12x50mm Neodymium Magnet, 12 x 50mm Cylinder Magnet is made of Grade N42 NdFeB, Nickel Plated. The dimension is 12mm dia. x 50mm thick, Axial magnetized. Pull force is approximately 38.23 lbs (17.38kg).

D12x50mm Neodymium Cylinder Magnets is made from high perfermance N42 NdFeB. The dimesion is 12mm dia. x 50mm thick, Ni-Cu-Ni (Nickel) coating. Pull force: 38.23 lbs (17.38kg). Magnetization direction: Axial (Poles on Flat Ends)

D12x50mm Neodymium Magnet, 12 x 50mm Cylinder Magnet is made of Grade N42 NdFeB, Nickel Plated. The dimension is 12mm dia. x 50mm thick, Axial magnetized. Pull force is approximately 38.23 lbs (17.38kg).

Different grade, coating or magnetization direction can also be custom-made for this size. You can send us your inquiry for a quote. Discount can be applied for bulk quantities.

D12x50mm

Data sheet

Item Number
D12x50mm
Material
NdFeB
Grade
N42
Size
12mm dia. x 50mm thick
Tolerance
±0.004"(±0.1mm)
Coating
Nickel Plated
Magnetization Direction
Axial
Weight
42.412g
Pull Force
38.23 lbs (17.38kg)
Diameter
D. 9.53-12.7mm
Thickness
G. 25.4-50.8mm
