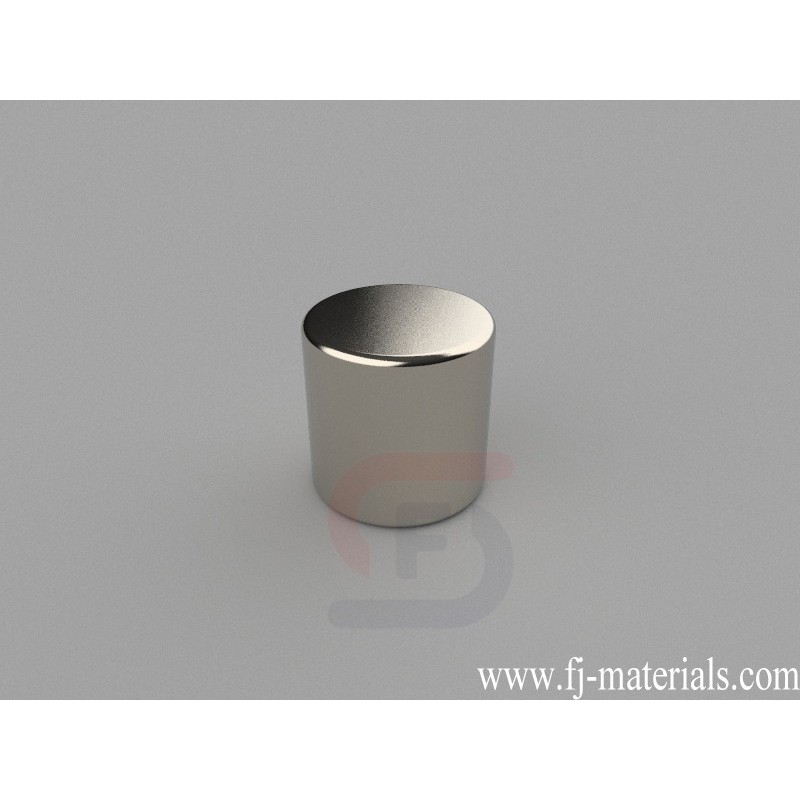

15mm dia. x 15mm thick Cylinder Magnets | D15x15mm

D15x15mm Neodymium Magnet, 15 x 15mm Cylinder Magnet is made of Grade N42 NdFeB, Nickel Plated. The dimension is 15mm dia. x 15mm thick, Axial magnetized. Pull force is approximately 28.62 lbs (13.01kg).

D15x15mm Neodymium Cylinder Magnets is made from high perfermance N42 NdFeB. The dimesion is 15mm dia. x 15mm thick, Ni-Cu-Ni (Nickel) coating. Pull force: 28.62 lbs (13.01kg). Magnetization direction: Axial (Poles on Flat Ends)

D15x15mm Neodymium Magnet, 15 x 15mm Cylinder Magnet is made of Grade N42 NdFeB, Nickel Plated. The dimension is 15mm dia. x 15mm thick, Axial magnetized. Pull force is approximately 28.62 lbs (13.01kg).

Different grade, coating or magnetization direction can also be custom-made for this size. You can send us your inquiry for a quote. Discount can be applied for bulk quantities.

D15x15mm

Data sheet

Item Number
D15x15mm
Material
NdFeB
Grade
N42
Size
15mm dia. x 15mm thick
Tolerance
±0.004"(±0.1mm)
Coating
Nickel Plated
Magnetization Direction
Axial
Weight
19.880g
Pull Force
28.62 lbs (13.01kg)
Diameter
E. 12.7-19.05mm
Thickness
E. 12.7-19.05mm
