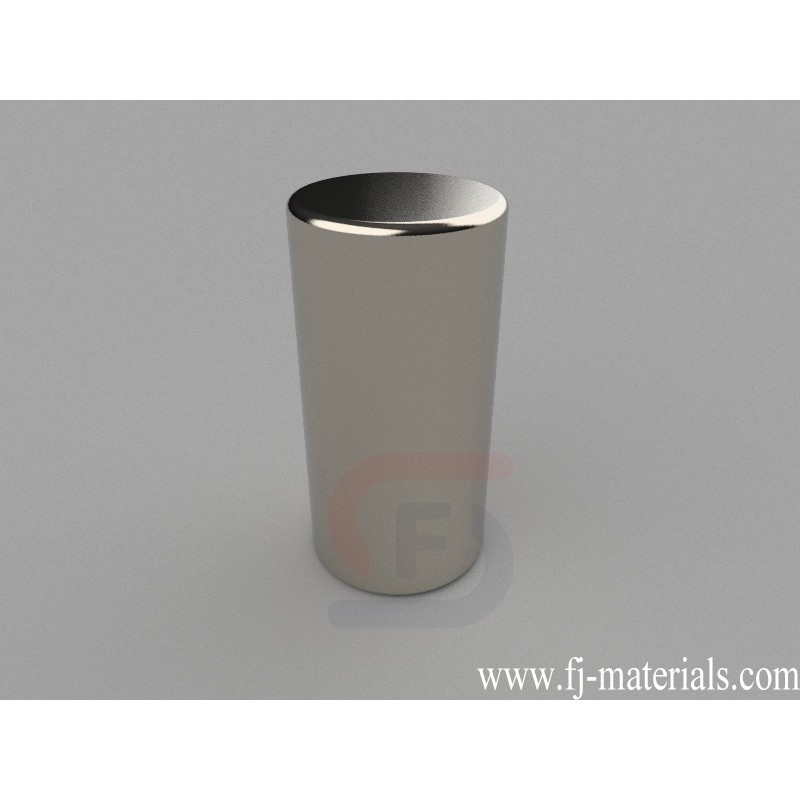

15mm dia. x 30mm thick Cylinder Magnets | D15x30mm

D15x30mm Neodymium Magnet, 15 x 30mm Cylinder Magnet is made of Grade N42 NdFeB, Nickel Plated. The dimension is 15mm dia. x 30mm thick, Axial magnetized. Pull force is approximately 40.47 lbs (18.40kg).

D15x30mm Neodymium Cylinder Magnets is made from high perfermance N42 NdFeB. The dimesion is 15mm dia. x 30mm thick, Ni-Cu-Ni (Nickel) coating. Pull force: 40.47 lbs (18.40kg). Magnetization direction: Axial (Poles on Flat Ends)

D15x30mm Neodymium Magnet, 15 x 30mm Cylinder Magnet is made of Grade N42 NdFeB, Nickel Plated. The dimension is 15mm dia. x 30mm thick, Axial magnetized. Pull force is approximately 40.47 lbs (18.40kg).

Different grade, coating or magnetization direction can also be custom-made for this size. You can send us your inquiry for a quote. Discount can be applied for bulk quantities.

D15x30mm

Data sheet

Item Number
D15x30mm
Material
NdFeB
Grade
N42
Size
15mm dia. x 30mm thick
Tolerance
±0.004"(±0.1mm)
Coating
Nickel Plated
Magnetization Direction
Axial
Weight
39.761g
Pull Force
40.47 lbs (18.40kg)
Diameter
E. 12.7-19.05mm
Thickness
G. 25.4-50.8mm
