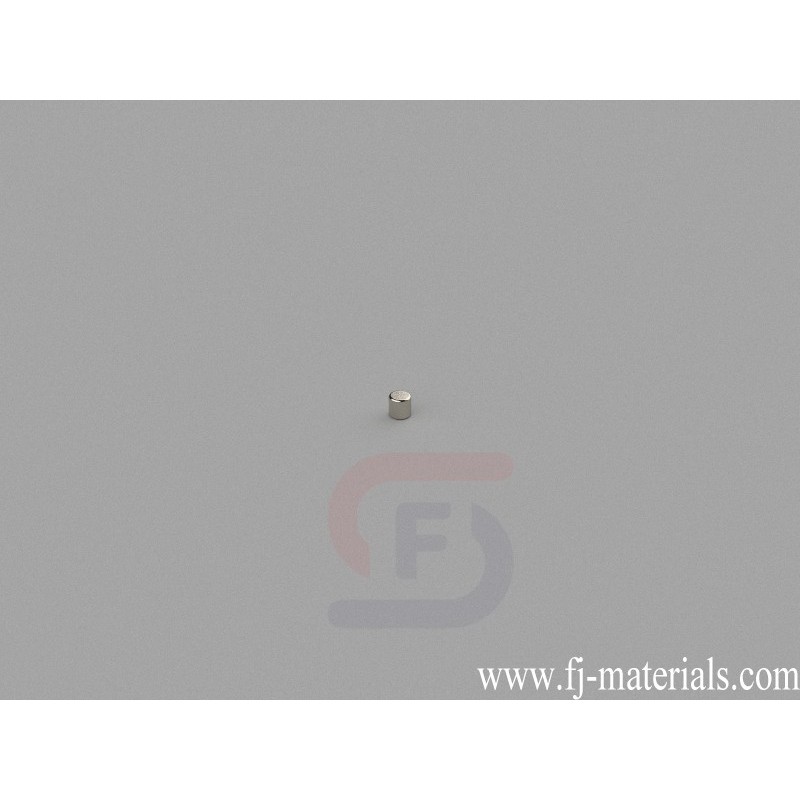

1mm dia. x 1mm thick Cylinder Magnets | D1x1mm

D1x1mm Neodymium Magnet, 1 x 1mm Cylinder Magnet is made of Grade N42 NdFeB, Nickel Plated. The dimension is 1mm dia. x 1mm thick, Axial magnetized. Pull force is approximately 0.17 lbs (0.08kg).

D1x1mm Neodymium Cylinder Magnets is made from high perfermance N42 NdFeB. The dimesion is 1mm dia. x 1mm thick, Ni-Cu-Ni (Nickel) coating. Pull force: 0.17 lbs (0.08kg). Magnetization direction: Axial (Poles on Flat Ends)

D1x1mm Neodymium Magnet, 1 x 1mm Cylinder Magnet is made of Grade N42 NdFeB, Nickel Plated. The dimension is 1mm dia. x 1mm thick, Axial magnetized. Pull force is approximately 0.17 lbs (0.08kg).

Different grade, coating or magnetization direction can also be custom-made for this size. You can send us your inquiry for a quote. Discount can be applied for bulk quantities.

D1x1mm

Data sheet

Item Number
D1x1mm
Material
NdFeB
Grade
N42
Size
1mm dia. x 1mm thick
Tolerance
±0.004"(±0.1mm)
Coating
Nickel Plated
Magnetization Direction
Axial
Weight
0.006g
Pull Force
0.17 lbs (0.08kg)
Diameter
A. 0.00-3.18mm
Thickness
A. 0.00-3.18mm
