1mm dia. x 3mm thick Cylinder Magnets | D1x3mm

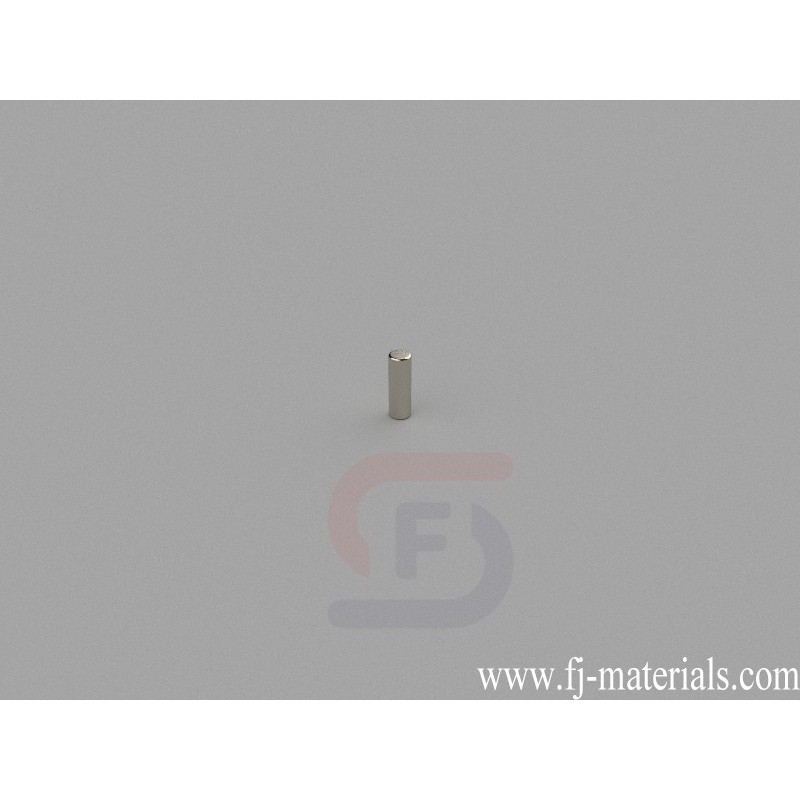

D1x3mm Neodymium Magnet, 1 x 3mm Cylinder Magnet is made of Grade N42 NdFeB, Nickel Plated. The dimension is 1mm dia. x 3mm thick, Axial magnetized. Pull force is approximately 0.29 lbs (0.13kg).

D1x3mm Neodymium Cylinder Magnets is made from high perfermance N42 NdFeB. The dimesion is 1mm dia. x 3mm thick, Ni-Cu-Ni (Nickel) coating. Pull force: 0.29 lbs (0.13kg). Magnetization direction: Axial (Poles on Flat Ends)

D1x3mm Neodymium Magnet, 1 x 3mm Cylinder Magnet is made of Grade N42 NdFeB, Nickel Plated. The dimension is 1mm dia. x 3mm thick, Axial magnetized. Pull force is approximately 0.29 lbs (0.13kg).

Different grade, coating or magnetization direction can also be custom-made for this size. You can send us your inquiry for a quote. Discount can be applied for bulk quantities.

D1x3mm

Data sheet

Item Number
D1x3mm
Material
NdFeB
Grade
N42
Size
1mm dia. x 3mm thick
Tolerance
±0.004"(±0.1mm)
Coating
Nickel Plated
Magnetization Direction
Axial
Weight
0.018g
Pull Force
0.29 lbs (0.13kg)
Diameter
A. 0.00-3.18mm
Thickness
A. 0.00-3.18mm

Inquiry

Please describe the product(s) which you would like to get more information/quotation about.
* These fields are required. Without such information, we are not able to process your inquiry. Our minimum order amount is USD300.
