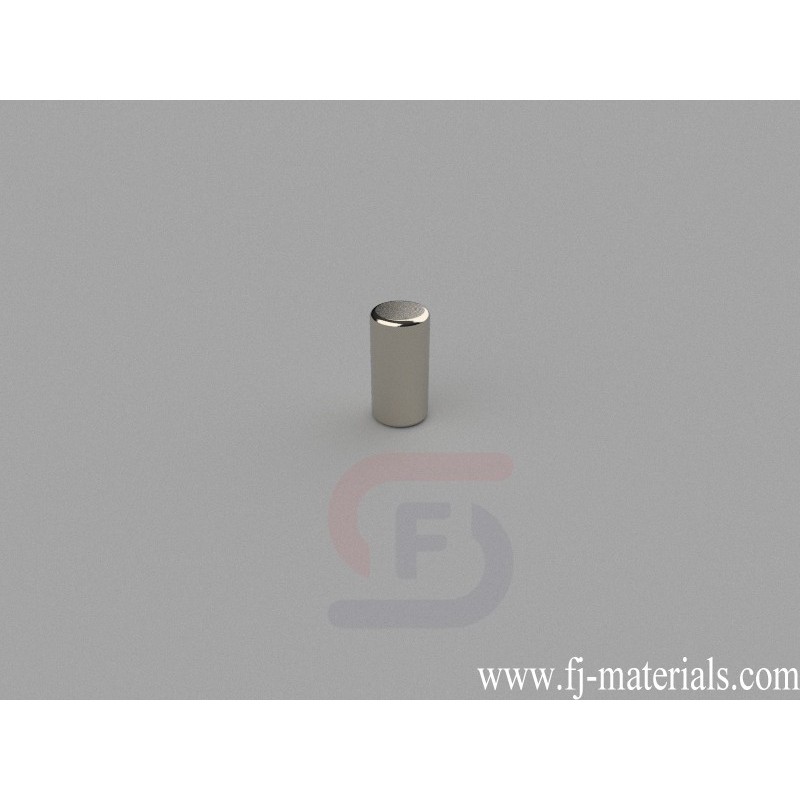

2.5mm dia. x 5mm thick Cylinder Magnets | D2.5x5mm

D2.5x5mm Neodymium Magnet, 2.5 x 5mm Cylinder Magnet is made of Grade N42 NdFeB, Nickel Plated. The dimension is 2.5mm dia. x 5mm thick, Axial magnetized. Pull force is approximately 1.34 lbs (0.61kg).

D2.5x5mm Neodymium Cylinder Magnets is made from high perfermance N42 NdFeB. The dimesion is 2.5mm dia. x 5mm thick, Ni-Cu-Ni (Nickel) coating. Pull force: 1.34 lbs (0.61kg). Magnetization direction: Axial (Poles on Flat Ends)

D2.5x5mm Neodymium Magnet, 2.5 x 5mm Cylinder Magnet is made of Grade N42 NdFeB, Nickel Plated. The dimension is 2.5mm dia. x 5mm thick, Axial magnetized. Pull force is approximately 1.34 lbs (0.61kg).

Different grade, coating or magnetization direction can also be custom-made for this size. You can send us your inquiry for a quote. Discount can be applied for bulk quantities.

D2.5x5mm

Data sheet

Item Number
D2.5x5mm
Material
NdFeB
Grade
N42
Size
2.5mm dia. x 5mm thick
Tolerance
±0.004"(±0.1mm)
Coating
Nickel Plated
Magnetization Direction
Axial
Weight
0.184g
Pull Force
1.34 lbs (0.61kg)
Diameter
A. 0.00-3.18mm
Thickness
B. 3.18-6.35mm
