20mm dia. x 20mm thick Cylinder Magnets | D20x20mm

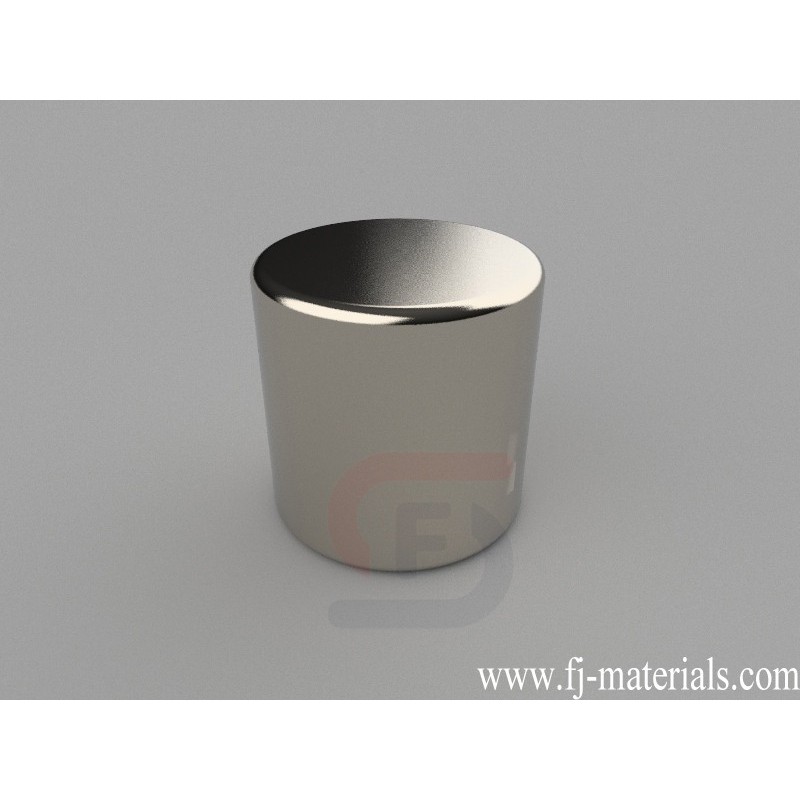

D20x20mm Neodymium Magnet, 20 x 20mm Cylinder Magnet is made of Grade N42 NdFeB, Nickel Plated. The dimension is 20mm dia. x 20mm thick, Axial magnetized. Pull force is approximately 49.43 lbs (22.47kg).
D20x20mm Neodymium Cylinder Magnets is made from high perfermance N42 NdFeB. The dimesion is 20mm dia. x 20mm thick, Ni-Cu-Ni (Nickel) coating. Pull force: 49.43 lbs (22.47kg). Magnetization direction: Axial (Poles on Flat Ends)
D20x20mm Neodymium Magnet, 20 x 20mm Cylinder Magnet is made of Grade N42 NdFeB, Nickel Plated. The dimension is 20mm dia. x 20mm thick, Axial magnetized. Pull force is approximately 49.43 lbs (22.47kg).
Different grade, coating or magnetization direction can also be custom-made for this size. You can send us your inquiry for a quote. Discount can be applied for bulk quantities.
D20x20mm
Data sheet
- Item Number
- D20x20mm
- Material
- NdFeB
- Grade
- N42
- Size
- 20mm dia. x 20mm thick
- Tolerance
- ±0.004"(±0.1mm)
- Coating
- Nickel Plated
- Magnetization Direction
- Axial
- Weight
- 47.124g
- Pull Force
- 49.43 lbs (22.47kg)
- Diameter
- F. 19.05-25.4mm
- Thickness
- F. 19.05-25.4mm
D20x20mm Neodymium Magnet, 20 x 20mm Cylinder Magnet is made of Grade N42 NdFeB, Nickel Plated. The dimension is 20mm dia. x 20mm thick, Axial magnetized. Pull force is approximately 49.43 lbs (22.47kg).
