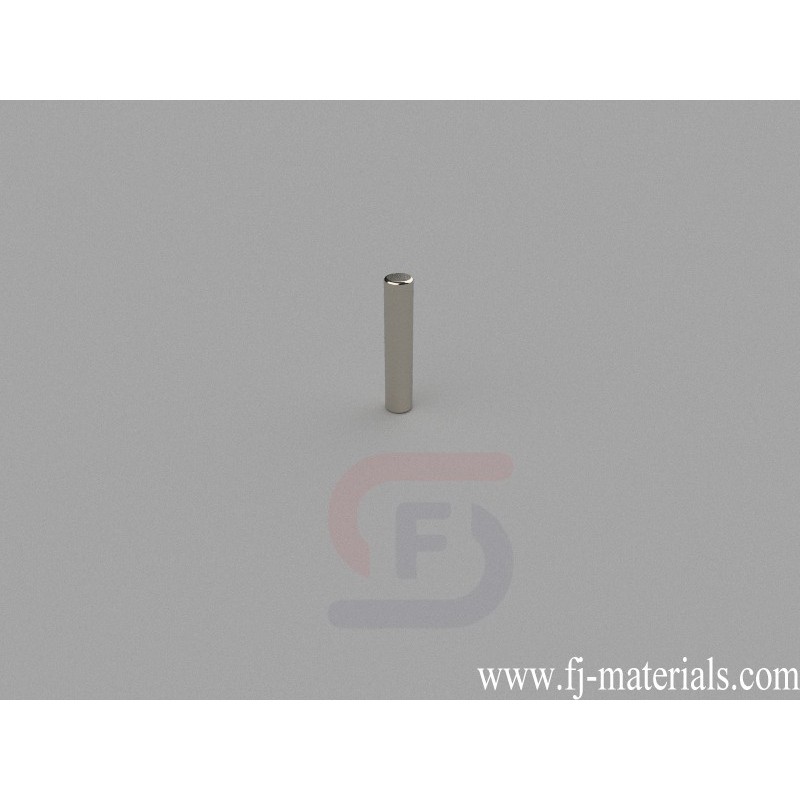

2mm dia. x 10mm thick Cylinder Magnets | D2x10mm
D2x10mm Neodymium Magnet, 2 x 10mm Cylinder Magnet is made of Grade N42 NdFeB, Nickel Plated. The dimension is 2mm dia. x 10mm thick, Axial magnetized. Pull force is approximately 1.39 lbs (0.63kg).
D2x10mm Neodymium Cylinder Magnets is made from high perfermance N42 NdFeB. The dimesion is 2mm dia. x 10mm thick, Ni-Cu-Ni (Nickel) coating. Pull force: 1.39 lbs (0.63kg). Magnetization direction: Axial (Poles on Flat Ends)
D2x10mm Neodymium Magnet, 2 x 10mm Cylinder Magnet is made of Grade N42 NdFeB, Nickel Plated. The dimension is 2mm dia. x 10mm thick, Axial magnetized. Pull force is approximately 1.39 lbs (0.63kg).
Different grade, coating or magnetization direction can also be custom-made for this size. You can send us your inquiry for a quote. Discount can be applied for bulk quantities.
D2x10mm
Data sheet
- Item Number
- D2x10mm
- Material
- NdFeB
- Grade
- N42
- Size
- 2mm dia. x 10mm thick
- Tolerance
- ±0.004"(±0.1mm)
- Coating
- Nickel Plated
- Magnetization Direction
- Axial
- Weight
- 0.236g
- Pull Force
- 1.39 lbs (0.63kg)
- Diameter
- A. 0.00-3.18mm
- Thickness
- D. 9.53-12.7mm
D2x10mm Neodymium Magnet, 2 x 10mm Cylinder Magnet is made of Grade N42 NdFeB, Nickel Plated. The dimension is 2mm dia. x 10mm thick, Axial magnetized. Pull force is approximately 1.39 lbs (0.63kg).
