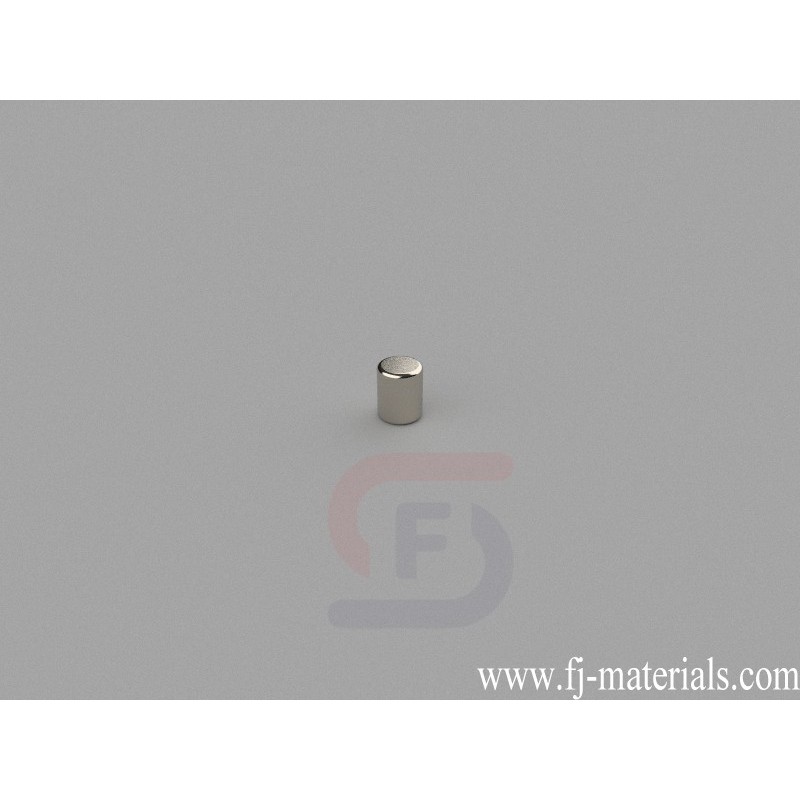

2mm dia. x 2.5mm thick Cylinder Magnets | D2x2.5mm

D2x2.5mm Neodymium Magnet, 2 x 2.5mm Cylinder Magnet is made of Grade N42 NdFeB, Nickel Plated. The dimension is 2mm dia. x 2.5mm thick, Axial magnetized. Pull force is approximately 0.70 lbs (0.32kg).

D2x2.5mm Neodymium Cylinder Magnets is made from high perfermance N42 NdFeB. The dimesion is 2mm dia. x 2.5mm thick, Ni-Cu-Ni (Nickel) coating. Pull force: 0.70 lbs (0.32kg). Magnetization direction: Axial (Poles on Flat Ends)

D2x2.5mm Neodymium Magnet, 2 x 2.5mm Cylinder Magnet is made of Grade N42 NdFeB, Nickel Plated. The dimension is 2mm dia. x 2.5mm thick, Axial magnetized. Pull force is approximately 0.70 lbs (0.32kg).

Different grade, coating or magnetization direction can also be custom-made for this size. You can send us your inquiry for a quote. Discount can be applied for bulk quantities.

D2x2.5mm

Data sheet

Item Number
D2x2.5mm
Material
NdFeB
Grade
N42
Size
2mm dia. x 2.5mm thick
Tolerance
±0.004"(±0.1mm)
Coating
Nickel Plated
Magnetization Direction
Axial
Weight
0.059g
Pull Force
0.70 lbs (0.32kg)
Diameter
A. 0.00-3.18mm
Thickness
A. 0.00-3.18mm
